Tow Bar Overhaul Kit + lock & keys - 41mm Small Type (early) for Land Rover Discovery 3/4

Tow Hitch Overhaul Kit

Small Type ( early )

for Land Rover Discovery 3 & 4

This is an overhaul kit for the tow hitch on your Discovery 3 & 4 (...please read below as you could have an early car with later tow hook as they are interchangable ).

The internal locking mechanics in the removable tow hitches become corroded, stiff or seized - this kit will allow you to recondition your tow hitch to its former glory!

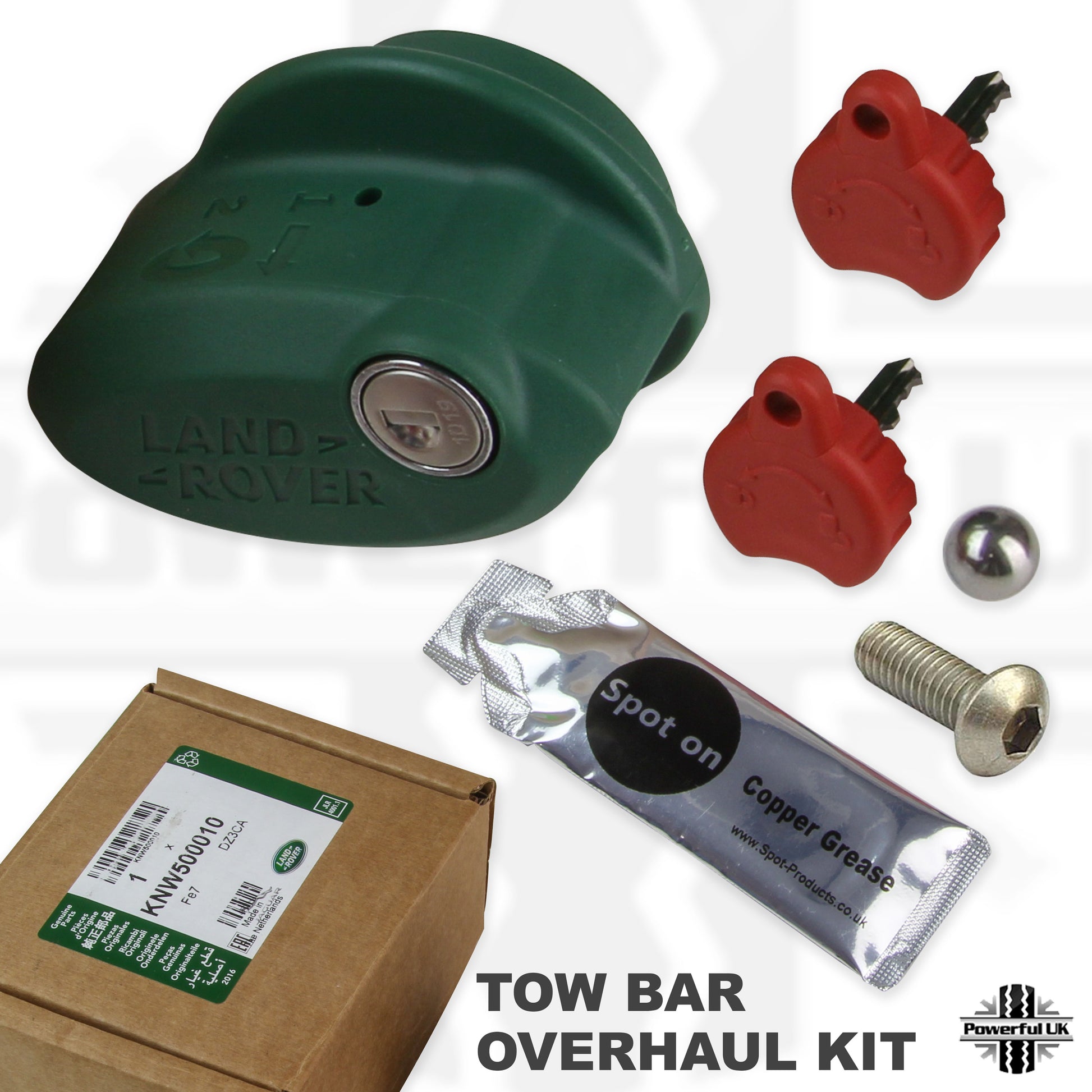

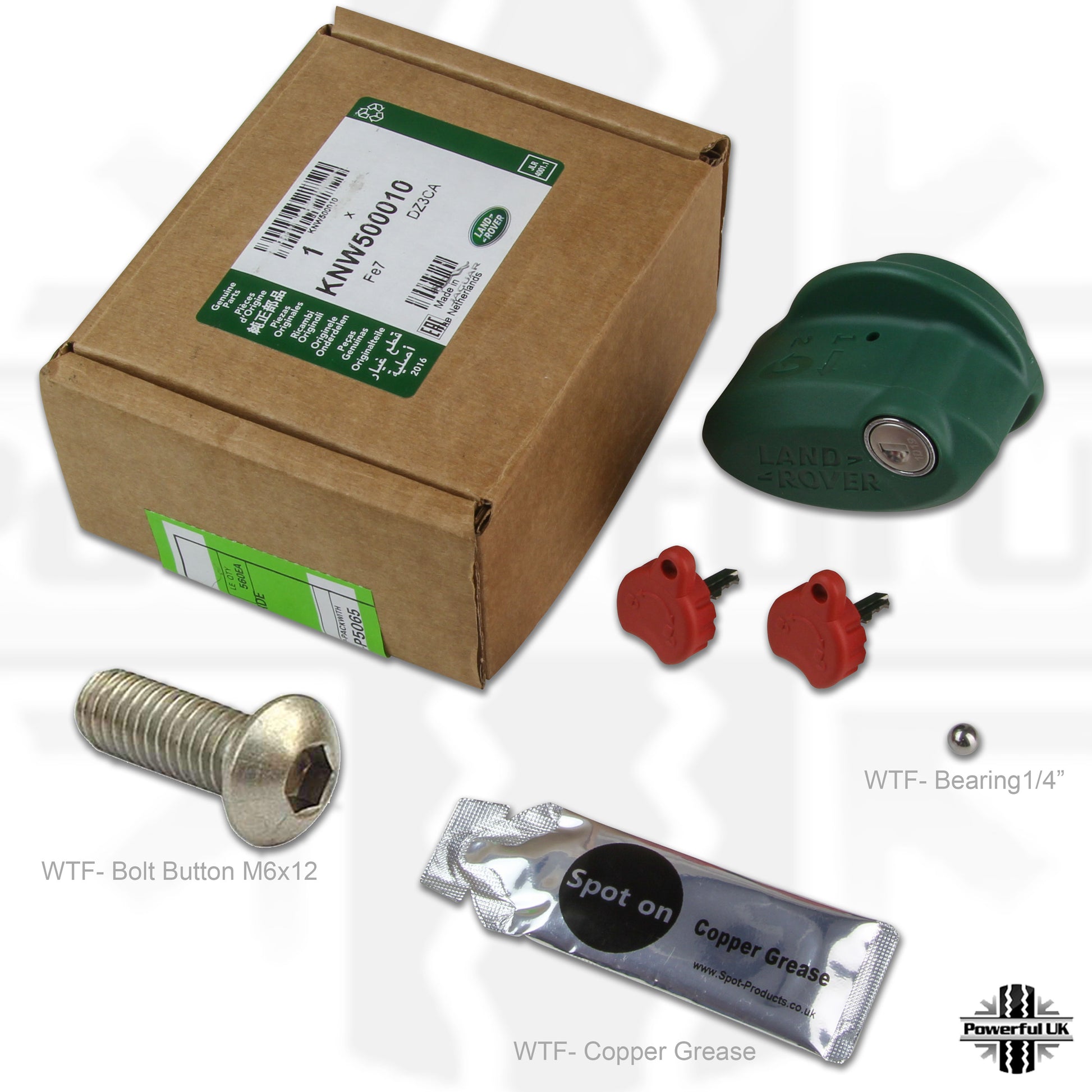

Included in the kit is:

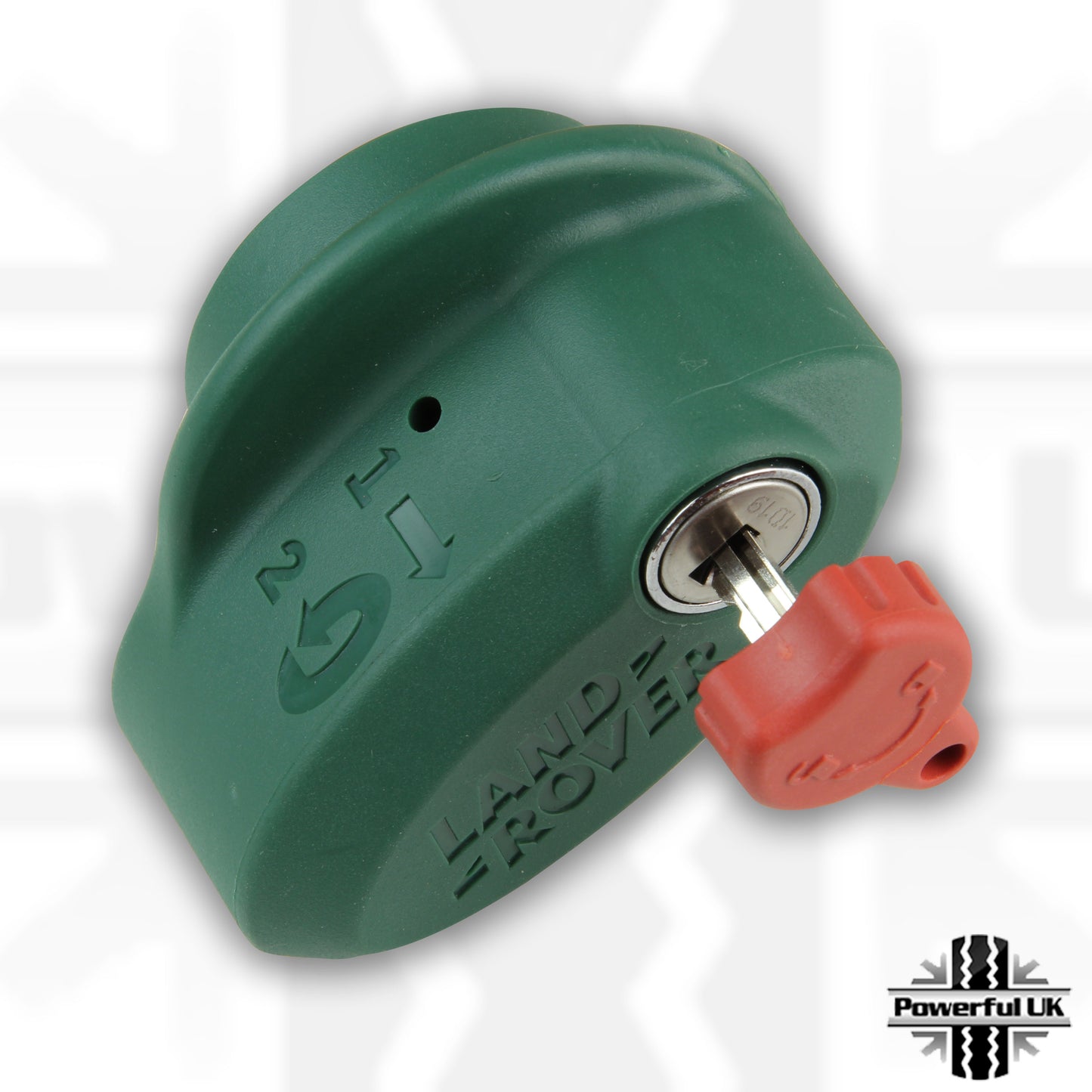

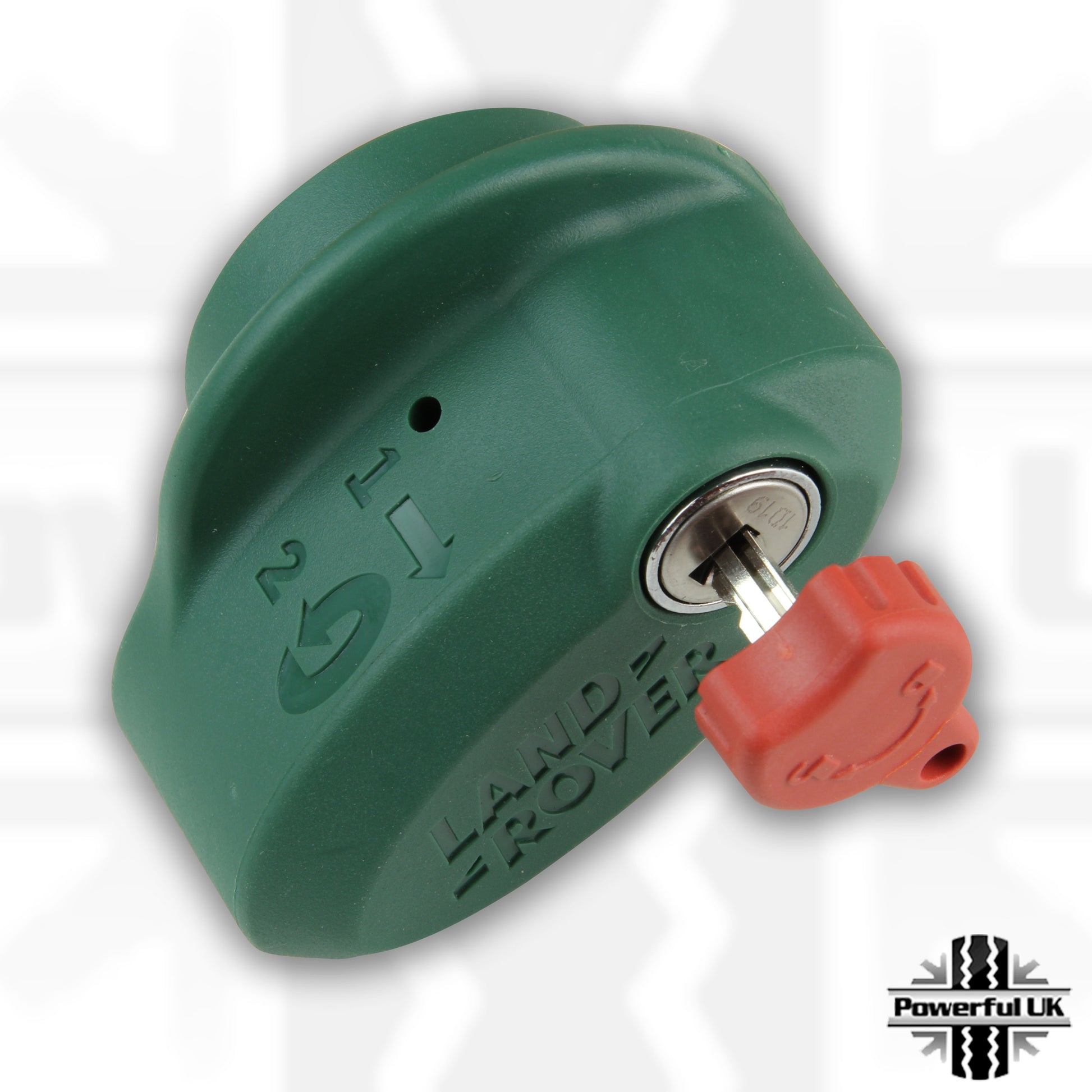

1 x Lock assembly (Small Type) with 2 keys (Genuine Land Rover item KNW500010)
1 x Copper grease sachet
1 x Steel ball bearing
1 x Button bolt

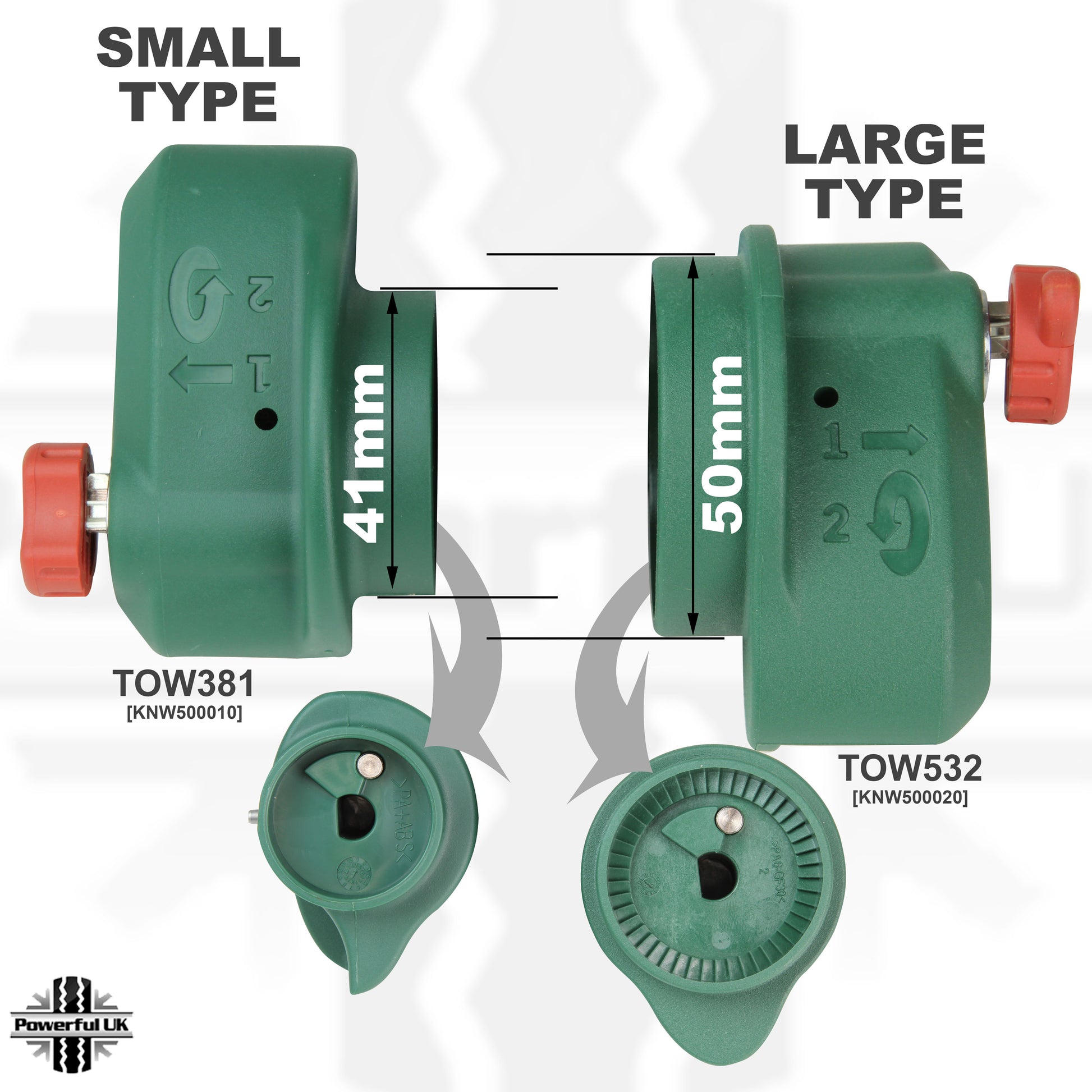

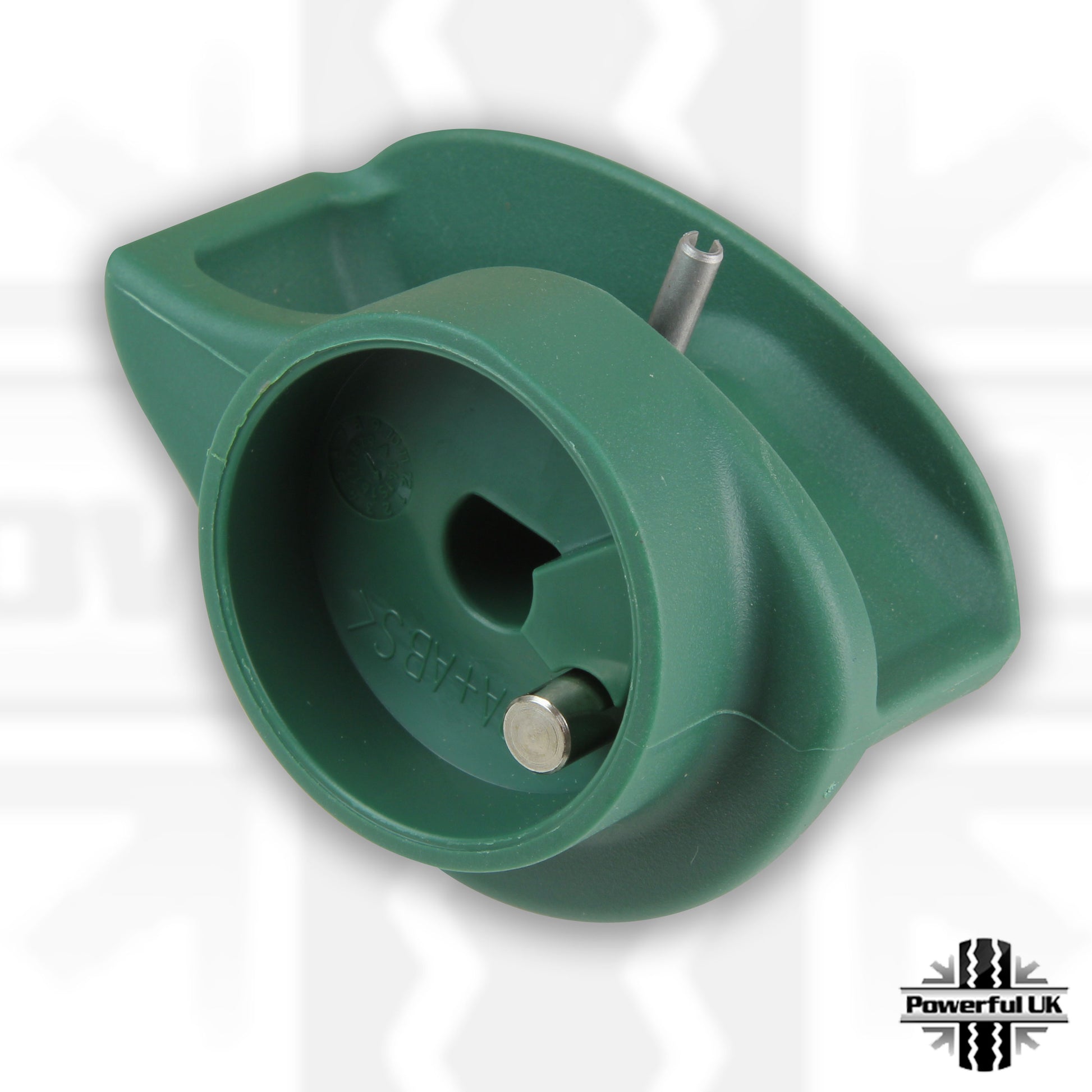

Please note: There are 2 type of lock assembly that are fitted to the Discovery 3/4 - small type or large type [ This listing is the SMALL type ]. Please check which you have before ordering (see photos).

Also note that the small type locking mechanism does not have a "rachet" inside so does not "click" as you twist it.

Although the tow bars are listed as "early" and "late" type the only change is the lock mechanism plastics - you can use either tow hook on all Land Rover Discovery models from 2005 -2016.

See below video showing you the overhaul process step-by-step.

If there is any damage to your tow bar / mechanism you should not use it - serious damage can arise from using a faulty tow bar !

NOTE: If your tow hitch is difficult to remove from your vehicle see part number TOW258 -Tool for a removal tool.

Fitting details

See below video

Which Vehicles will this fit ?

This item will fit all Discovery 3 and Discovery 4 (all models from 2005 -2016)
