Hardwire Kit for Blackvue Dashcam for Range Rover Evoque 1 with EARLY overhead console (2011-2014)

Power Tap-in Loom Hardwire Kit for BlackVue X Series Dashcam

for Range Rover Evoque with EARLY console (2011 -14)

This listing is for a plug and play power tap-in loom kit for the BlackVue Dashcam to fit the Range Rover Evoque (2011 -14).

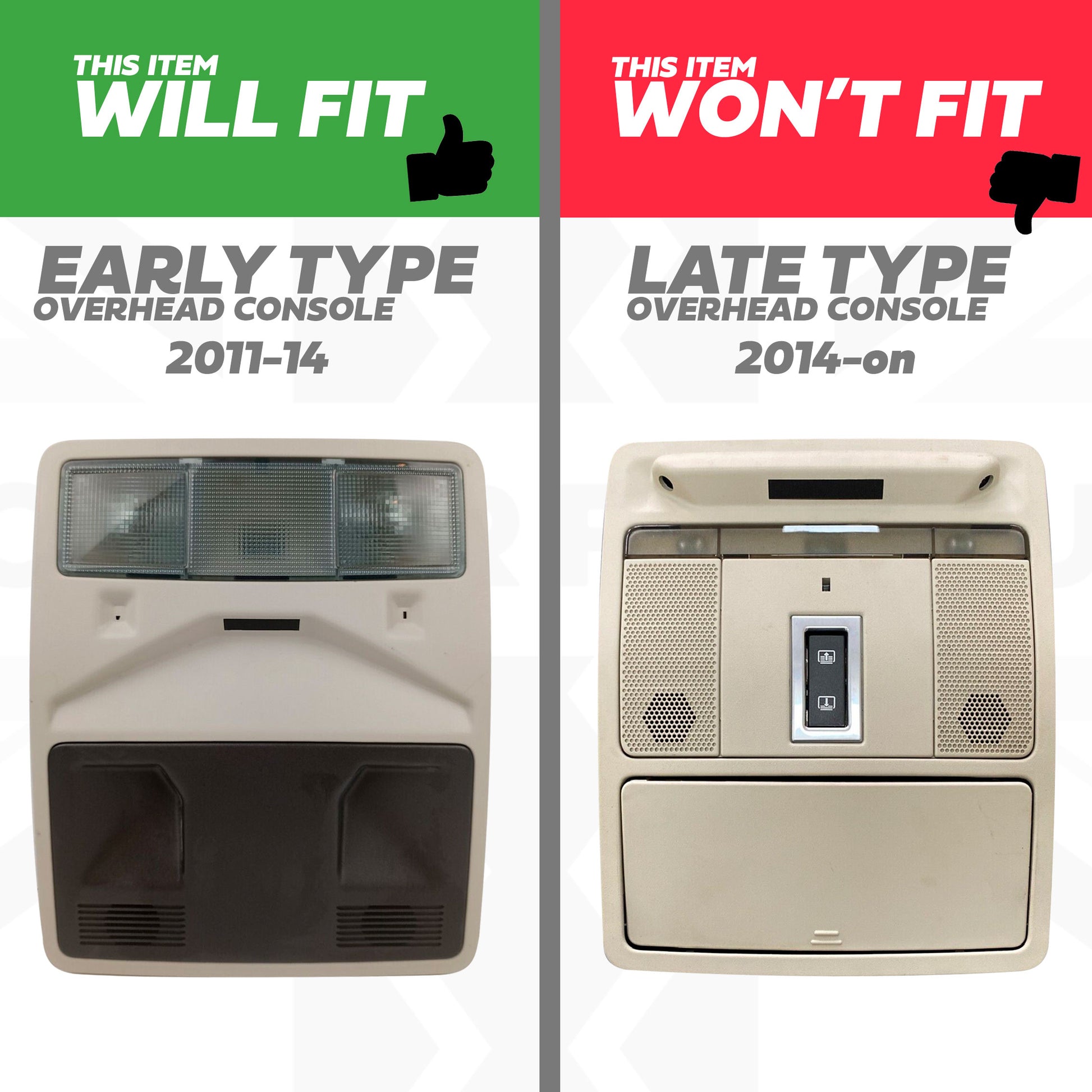

IMPORTANT: This loom is only suitable for Evoque's with the EARLY overhead console (see pics) - the EARLY overhead console was fitted from 2011 to around 2014.

This is a plug and play solution - no cutting or wiring skills needed.

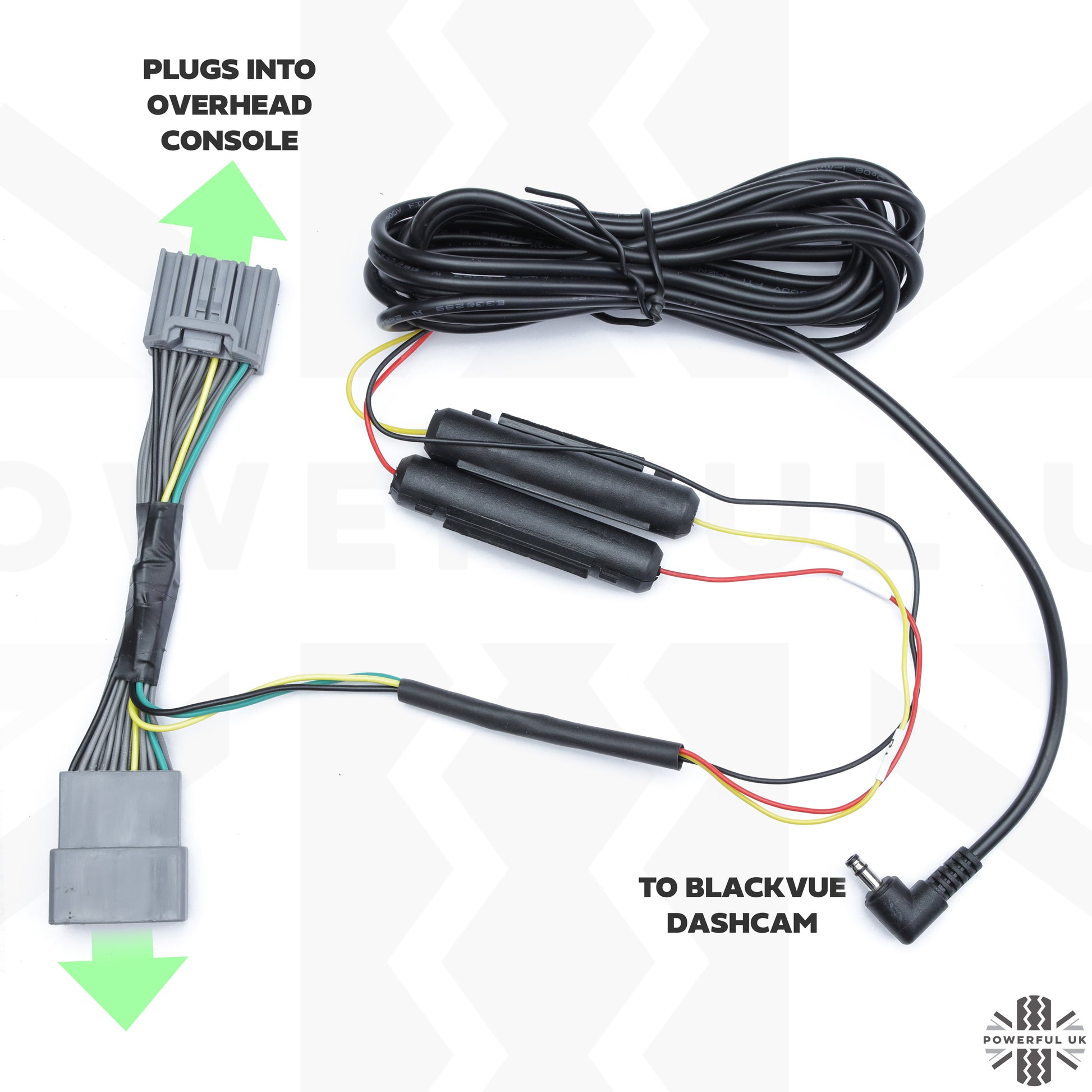

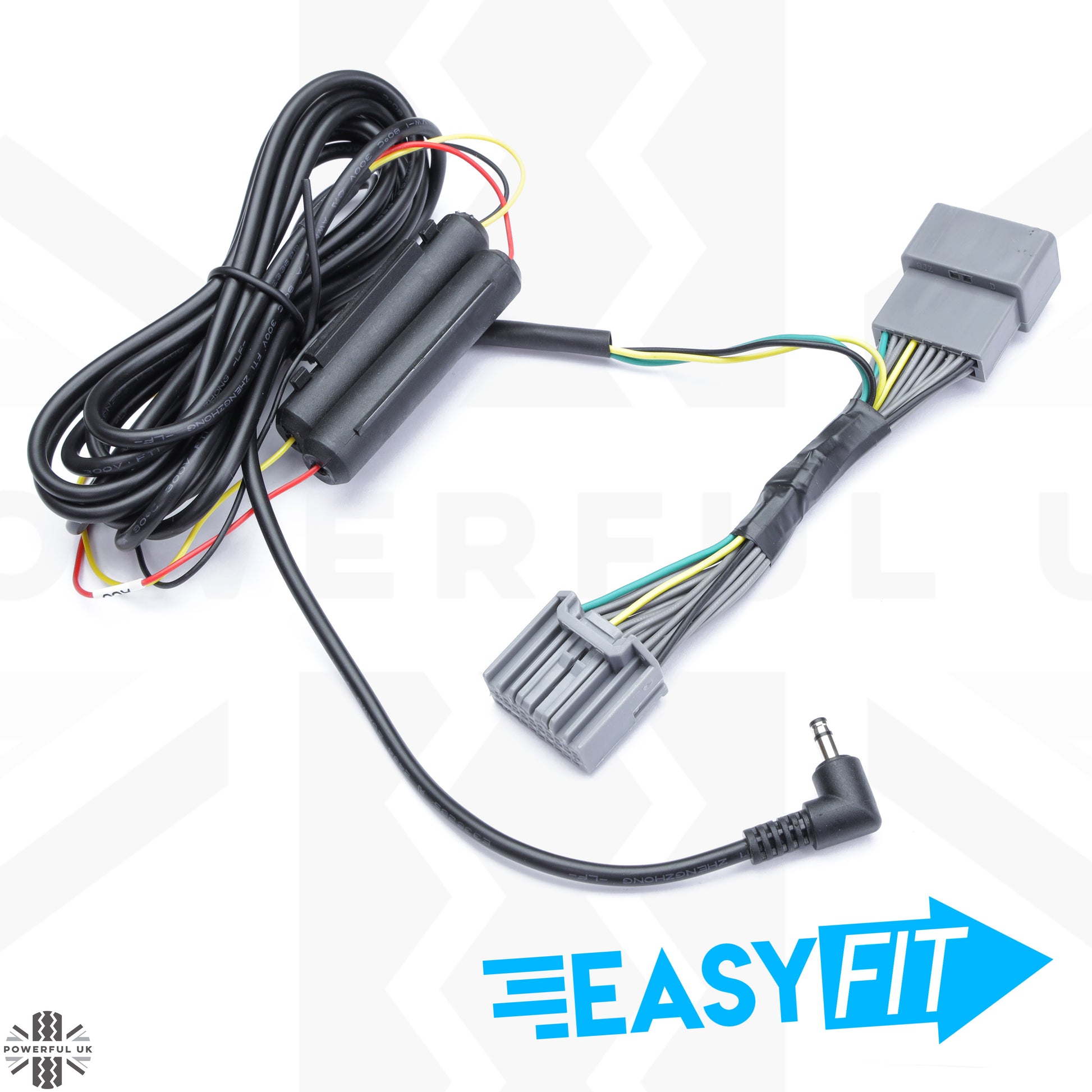

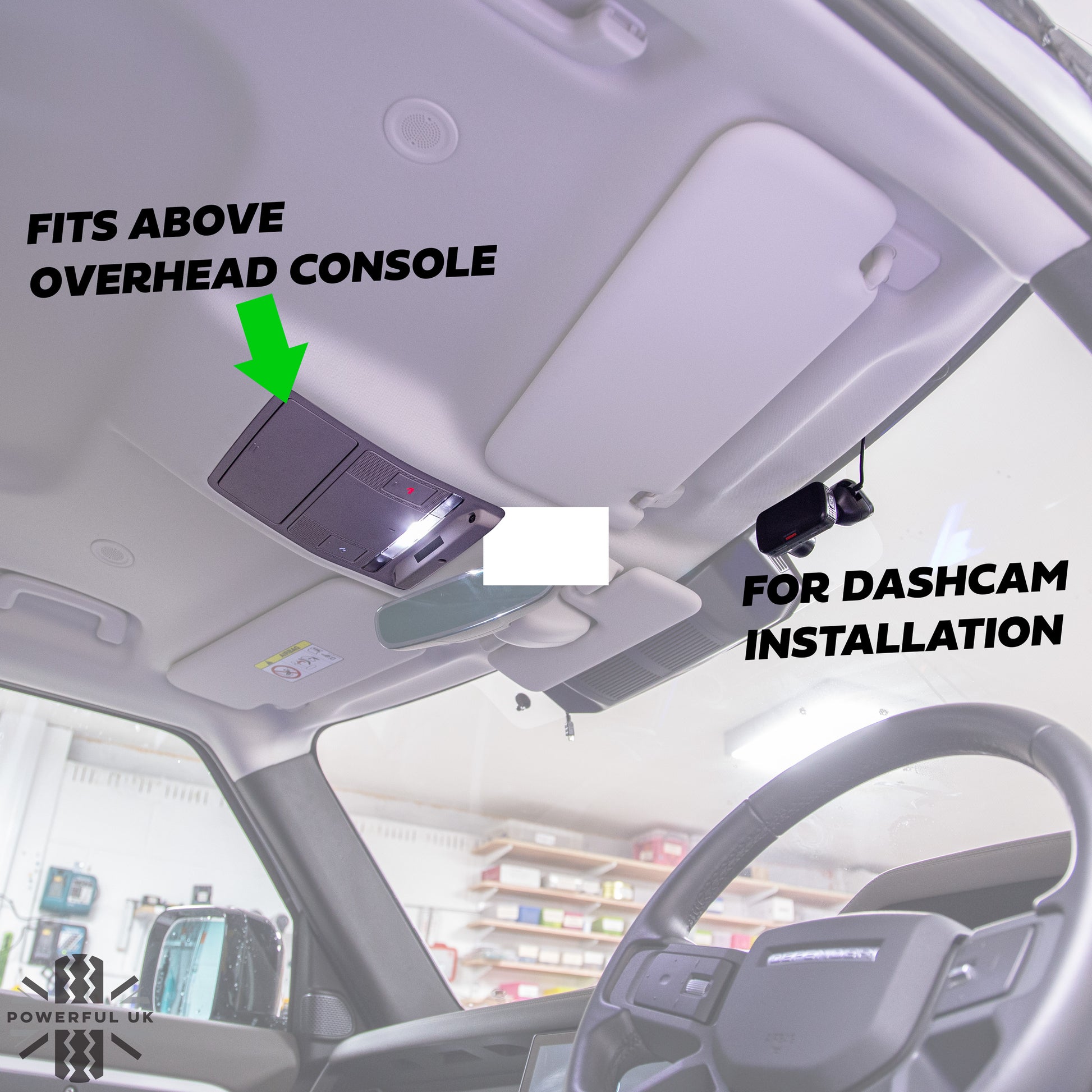

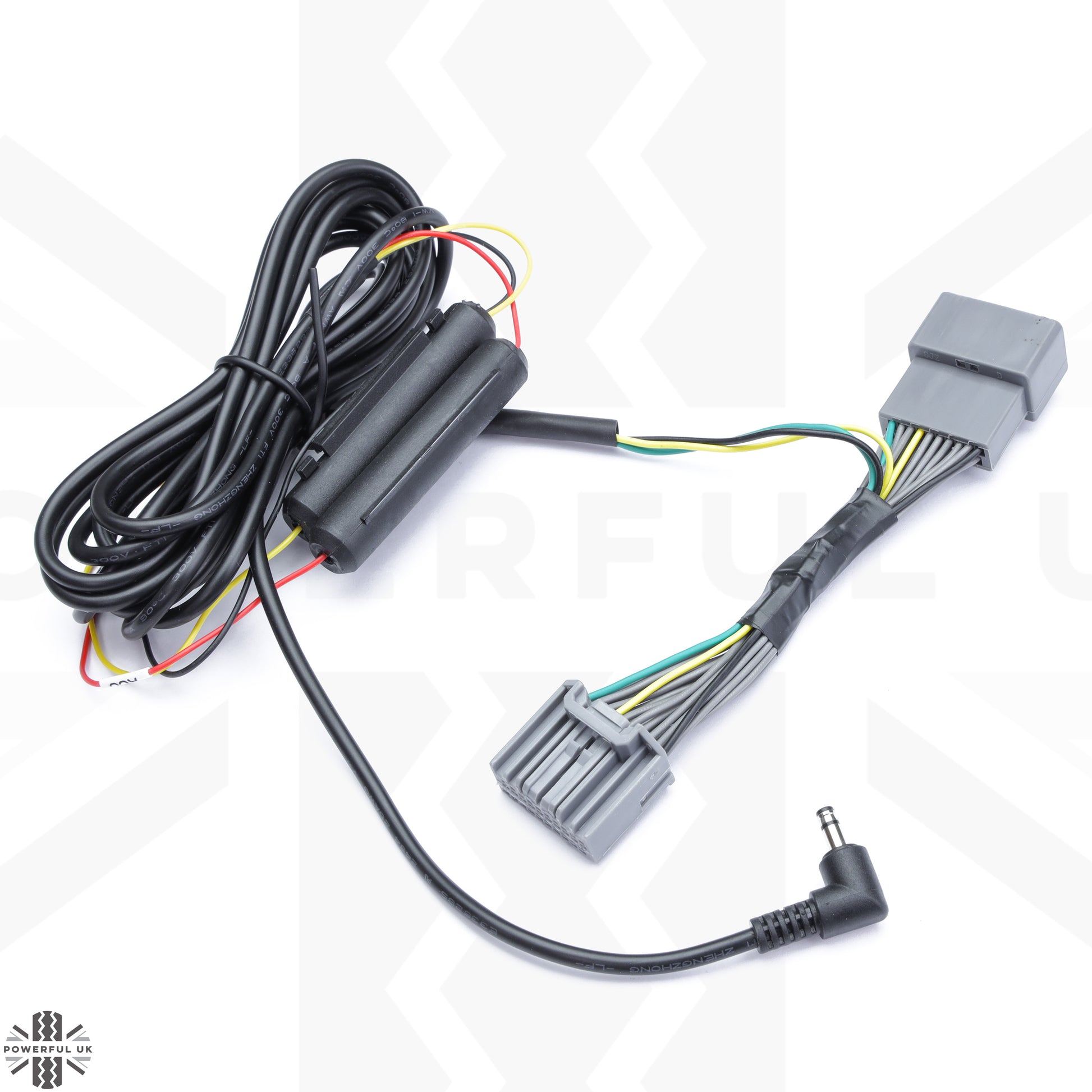

Our plug and play interceptor loom plugs in above the overhead console to give the necessary power feed without having to alter your vehicle's wiring.

The loom has the correct power connector on the end for Blackvue X Series dashcams.

This cable is compatible with the following cameras:

• DR900x/DR900x Plus Series
• DR750x/DR850x Plus Series (Not compatible with DR750x-2CH LTE Plus)
• DR590x Series

Note that the connector on this lead has 3 pins (Ground / Battery +ve / Ignition) which is used by most of the X series cameras - check compatibility with your BlackVue model before purchasing.

This is not a genuine Land Rover or Blackvue product.

Fitting details

• Disconnect your battery +ve lead (under the drivers seat) before fitting the loom to the vehicle - this makes it less likely for power surges that could damage car circuits when plugging / unplugging the overhead console.
• The ignition live feed comes from the body control module - if this is overloaded the circuit is isolated and can be reset with an ignition cycle ( turn the car on and off again )
• The battery positive feed comes via fuse 31 (5 Amps )  in the fusebox behind the glove box.
• If you have any issues with your car that needs investigation by a Land Rover dealer it is best to disconnect this loom so the vehicle is returned to its original configuration.


Which Vehicles will this fit ?

This item WILL fit the Range Rover Evoque 1st generation with the early type console (from 2011 to around 2014)

This item WILL NOT fit the Range Rover Evoque 1st generation with the late type console (late type console was used from around 2014 onwards)
