7" Halogen Headlight Upgrade kit - LED DRL Style - for Land Rover Series 1 2 3 - RHD

Crystal Halogen 'DRL style' Headlamp Conversion kit

RHD ( UK / Japan etc )

to fit Land Rover Series 1,2 and 3

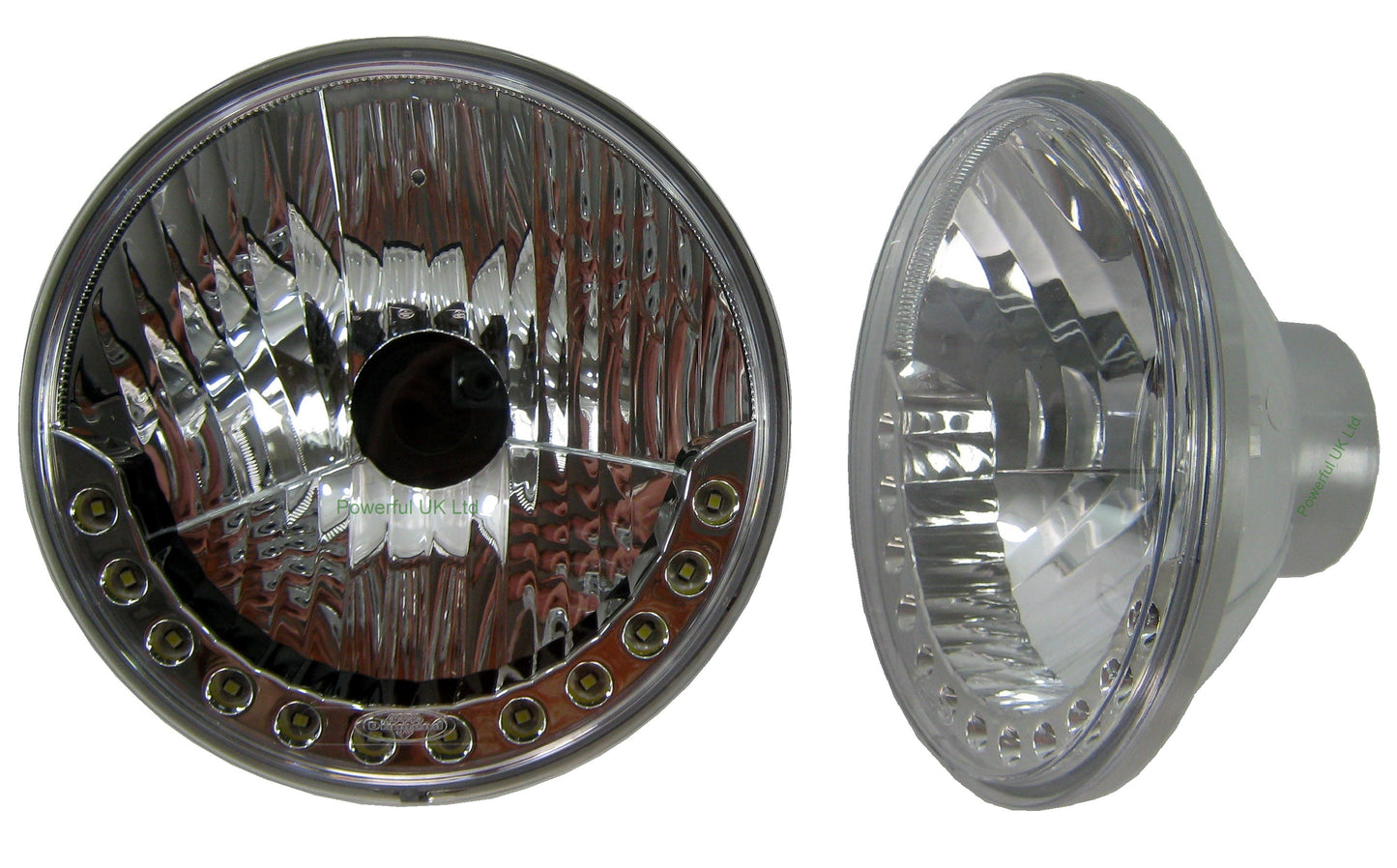

Upgrade the headlights in your Land Rover to these new Crystal Halogen headlights with an LED half ring around the bottom section of the lamp.

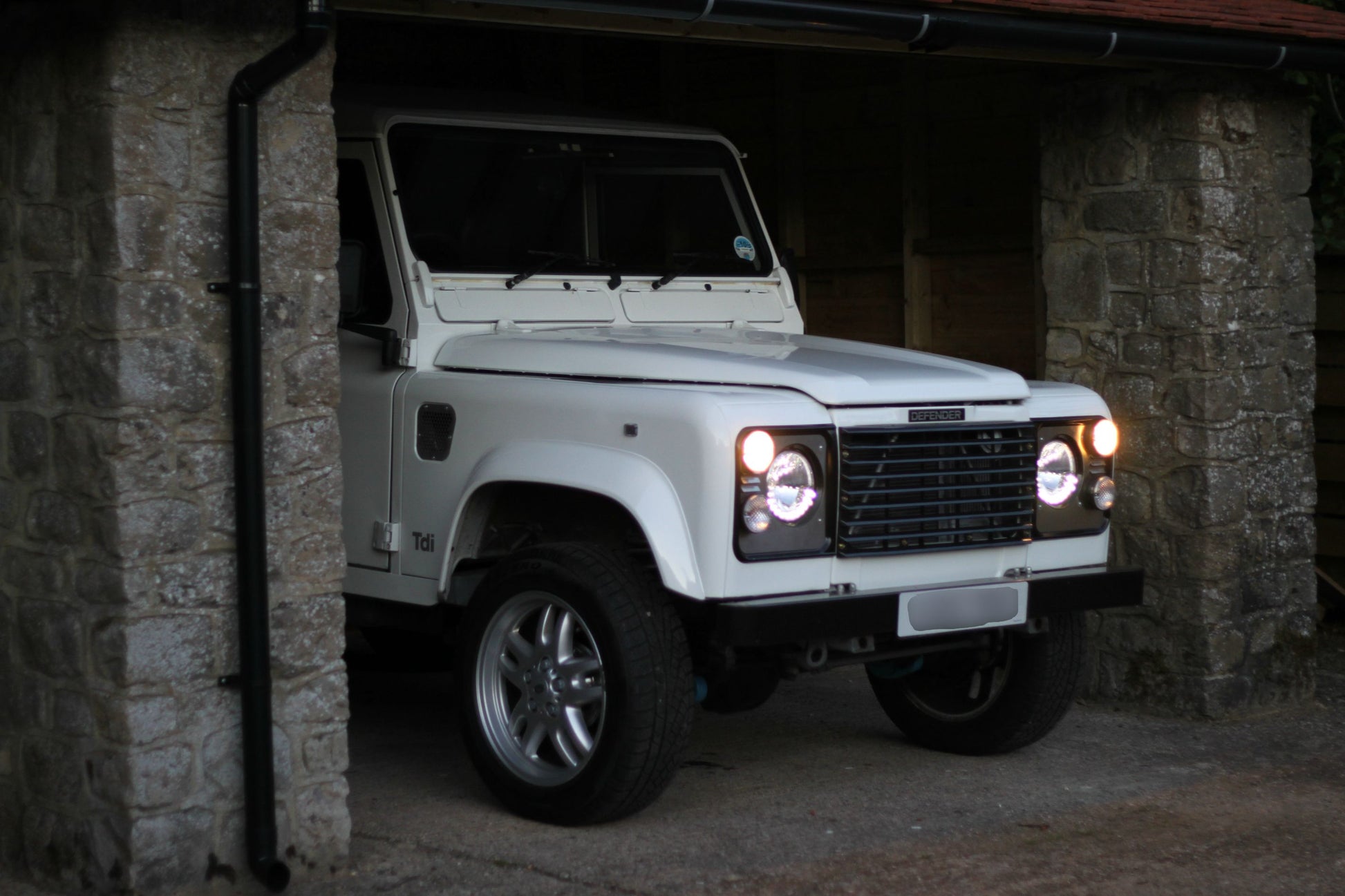

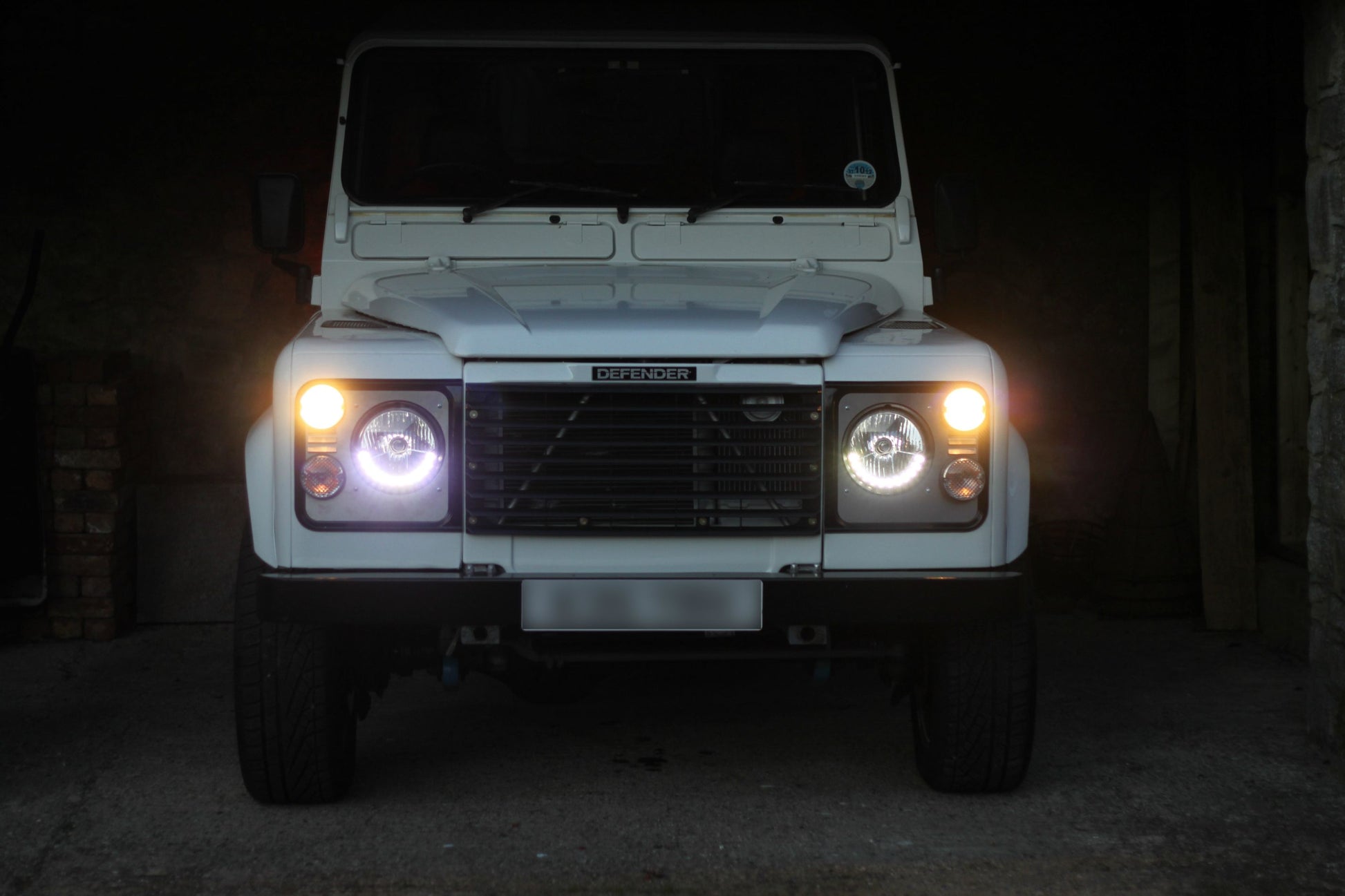

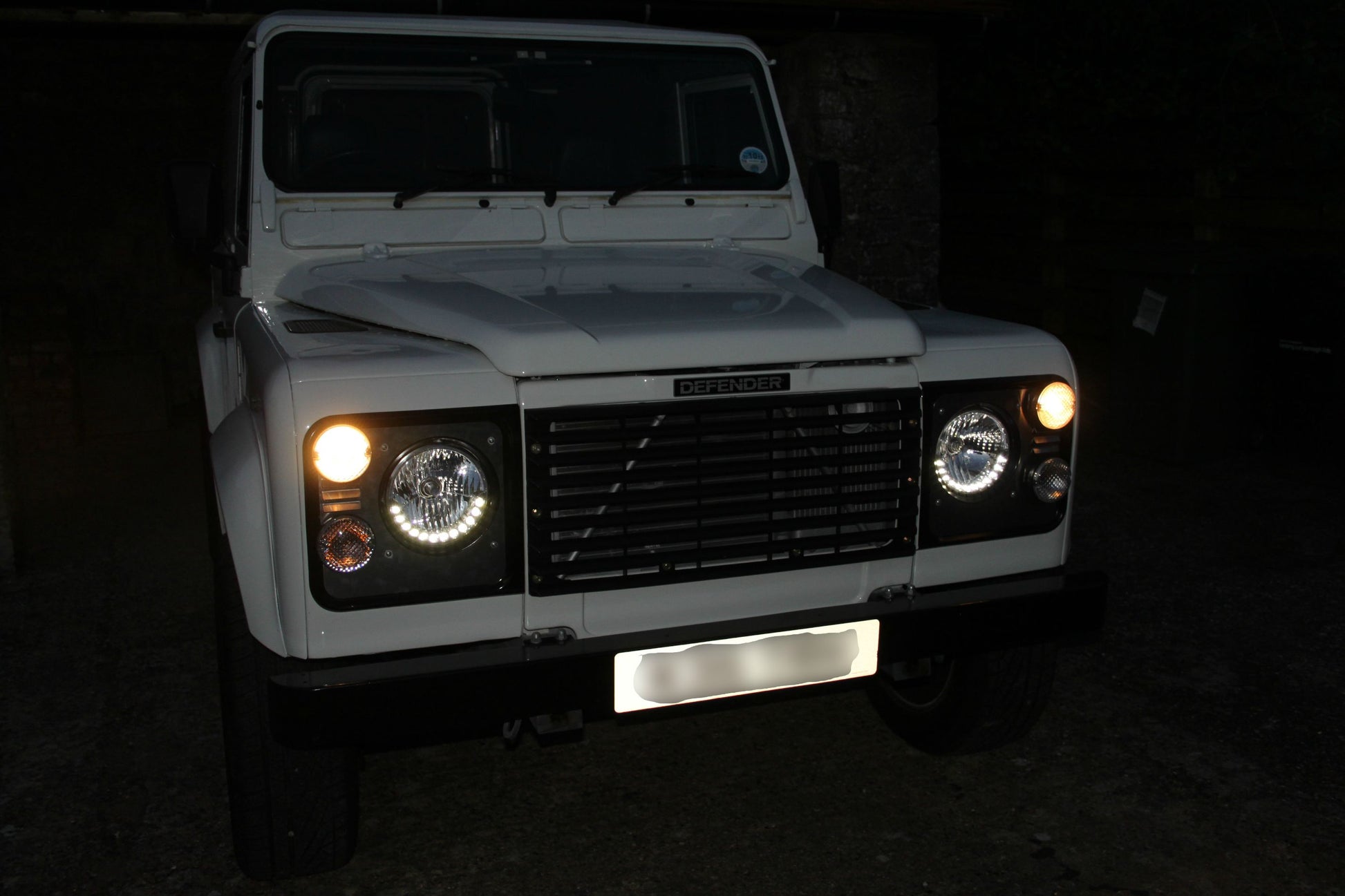

See gallery for some pictures sent to us by a customer who has recently fitted these to his defender ( thanks Jordan ).

You can link the LED power wires to the sidelights or link to an ignition source if you want them to come on with the ignition as Daytime Running light (DRL) style.

These headlights have been specially made for us here at Powerful UK and have a RHD ( Right Hand Drive ) beam pattern that will pass a UK MOT.

These lights have a superb light output on dip and main beam thanks to the beam pattern being set by the reflector not by the lens (as on standard headlights)

The lens is smooth giving a cleaner sharper appearance to the lights.

These lights give up to 25% more light output than standard headlights even using the same bulb !

ALL new cars use this new technology for the headlights and this is one major reason modern cars have much better lights

In addition to the better technology the reflector on these lights are made from plastic and so will not rust or corrode like the older metal ones.

The lens is made from a scratch resistant plastic.

These lights use Halogen H4 bulbs ( not included ) which you should have in your old lights ( unless you have sealed be units fitted )

The LED DRL now comes with a T10 emulator for a quick & easy fitment.

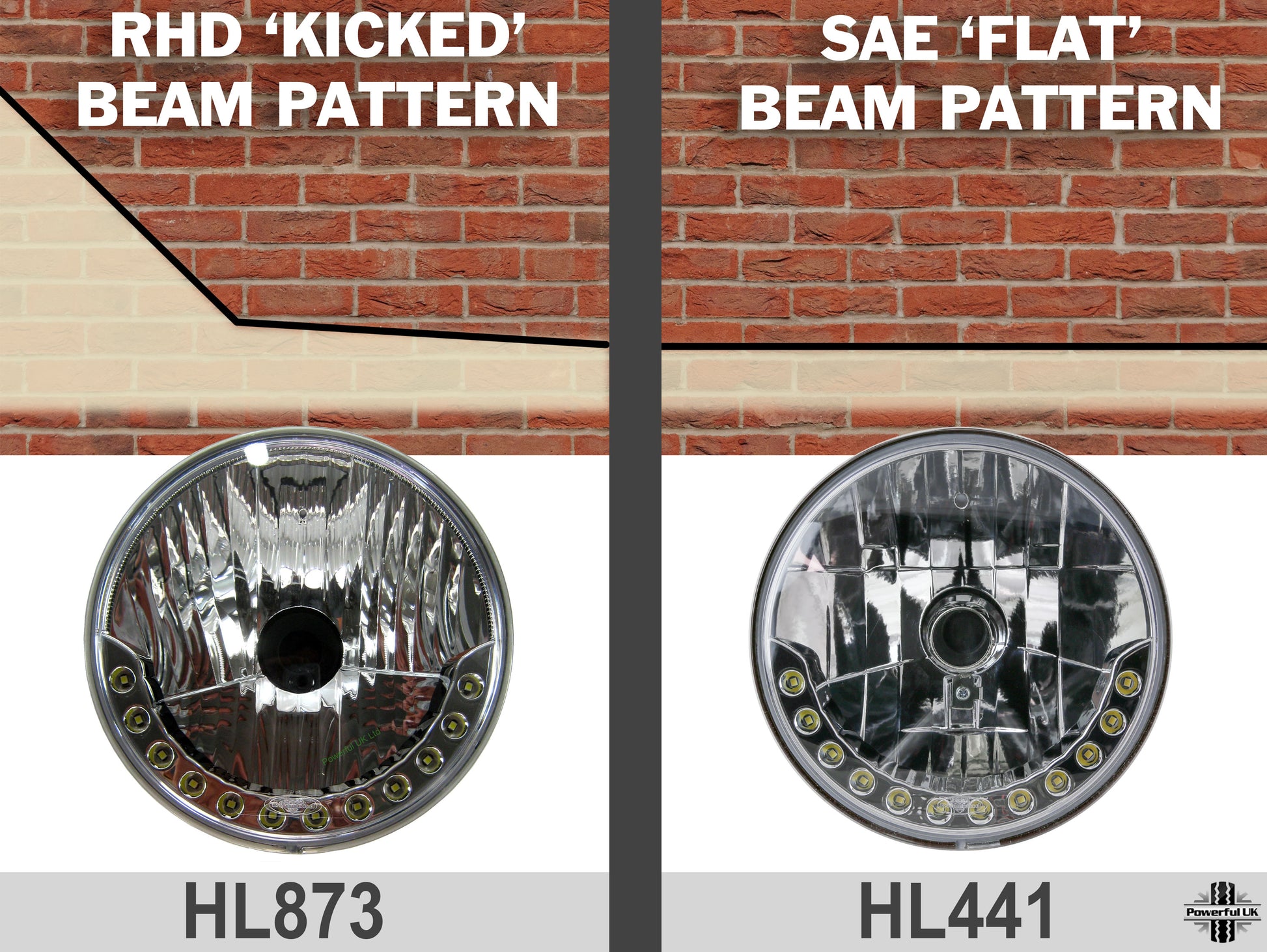

These lights are not E Marked but are RHD MOT passing lights - we now have a LHD / US specification version of this lamp - see our other items.

This listing is for a PAIR of headlights complete with LED side lights and rubber caps for the bulb ( no main H4 headlight bulbs are included ).

We have run these lights with 90/100W H4 bulbs with no problems.

These lights will fit into Lucas metal bowls also Lucas and Wipac plastic bowls.

You can link the LED power wires to the sidelight wire or link to an ignition source of you want them to come on with the ignition.

This is not a genuine Land Rover item.

Specification Summary

Lens - clear plastic

Reflector - Multi surface plastic reflector ( non rusting )

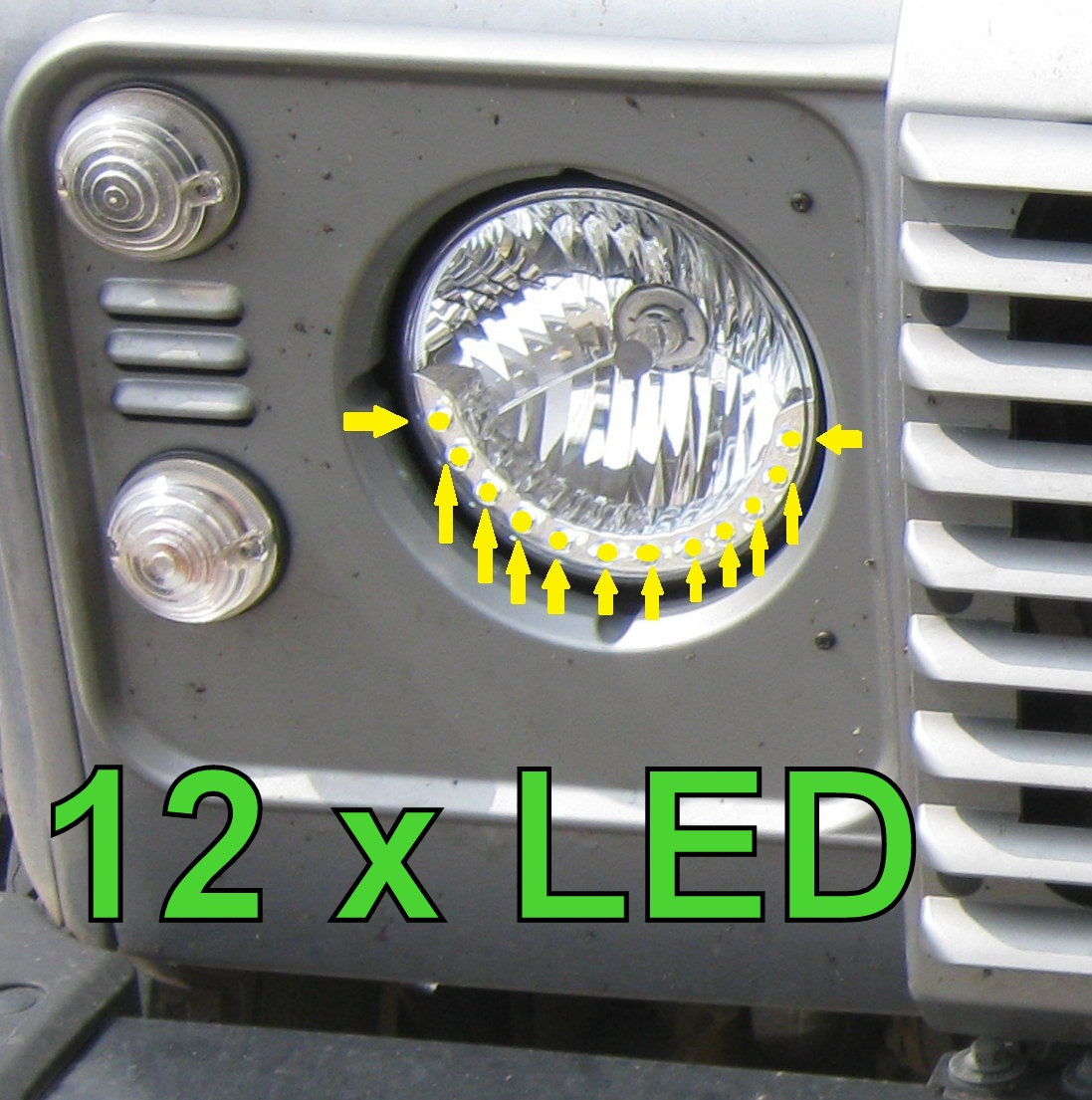

Side light - DRL style LED "smile" with 12 x 0.1w surface mount LED's

Bulb - Halogen H4 ( not included )

E Marked - No ( will pass MOT )

Fitting Details

Straight replacement for standard unit - see below fitting video ( for a new Defender but the process will be similar and actually easier on the earlier series models ).

No change to headlight wiring or connector needed as the bulbs connection is the same for sealed beam and halogen H4 bulbs.

You will need to make a new connection for the LED lights - this can be to the side light wires or an ignition source.

Note - the left headlight and right headlight are both the same.

Which Vehicles will this fit ?

These lights will also fit...

Austin A40

Austin A30

Austin A35

Austin Mini - all models

Ford Mk1 Escort

Ford Consul

Ford Zephyr

Ford Zodiac

Bedford CA

Bedford CF

Hillman Imp

Landrover Defender

Landrover Series 1,2 and 3

Range Rover Classic

Mazda MX5

Morris Minor

Morris Oxford

Triumph Herald

Triumph Vitesse

Triumph Spitfire

MGB

MGC

MG Midget

Riley Elf

Wolsely Hornet etc
