10" to 11.4" Infotainment Screen Kit for Land Rover Defender L663 (Brackets + Wiring Loom)

Custom Mount & Wiring Kit for 11.4" PIVI Screen
for Land Rover Defender L663

This kit will allow you to change the 10" screen for the 11.4" screen in the Land Rover Defender L663.

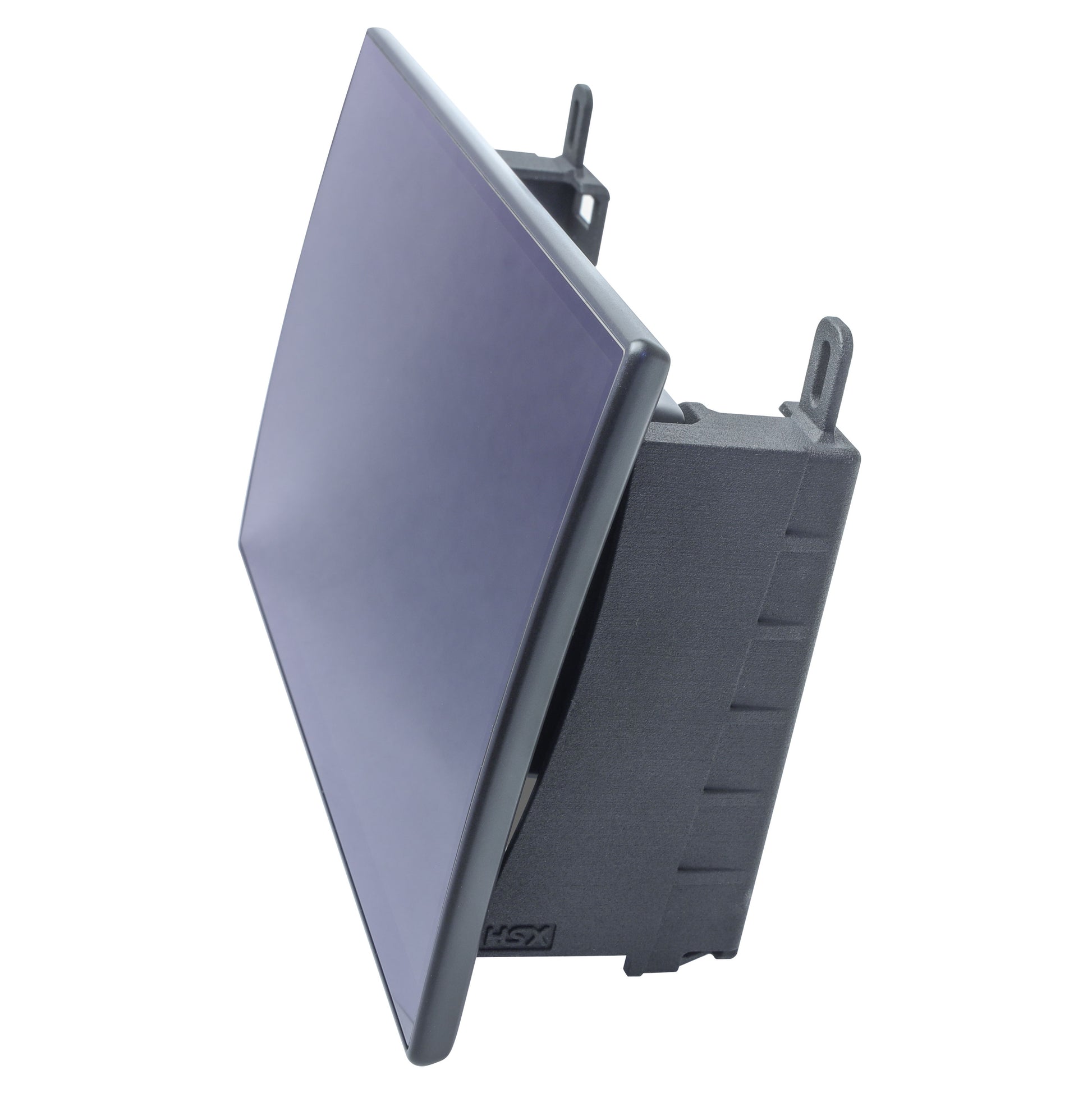

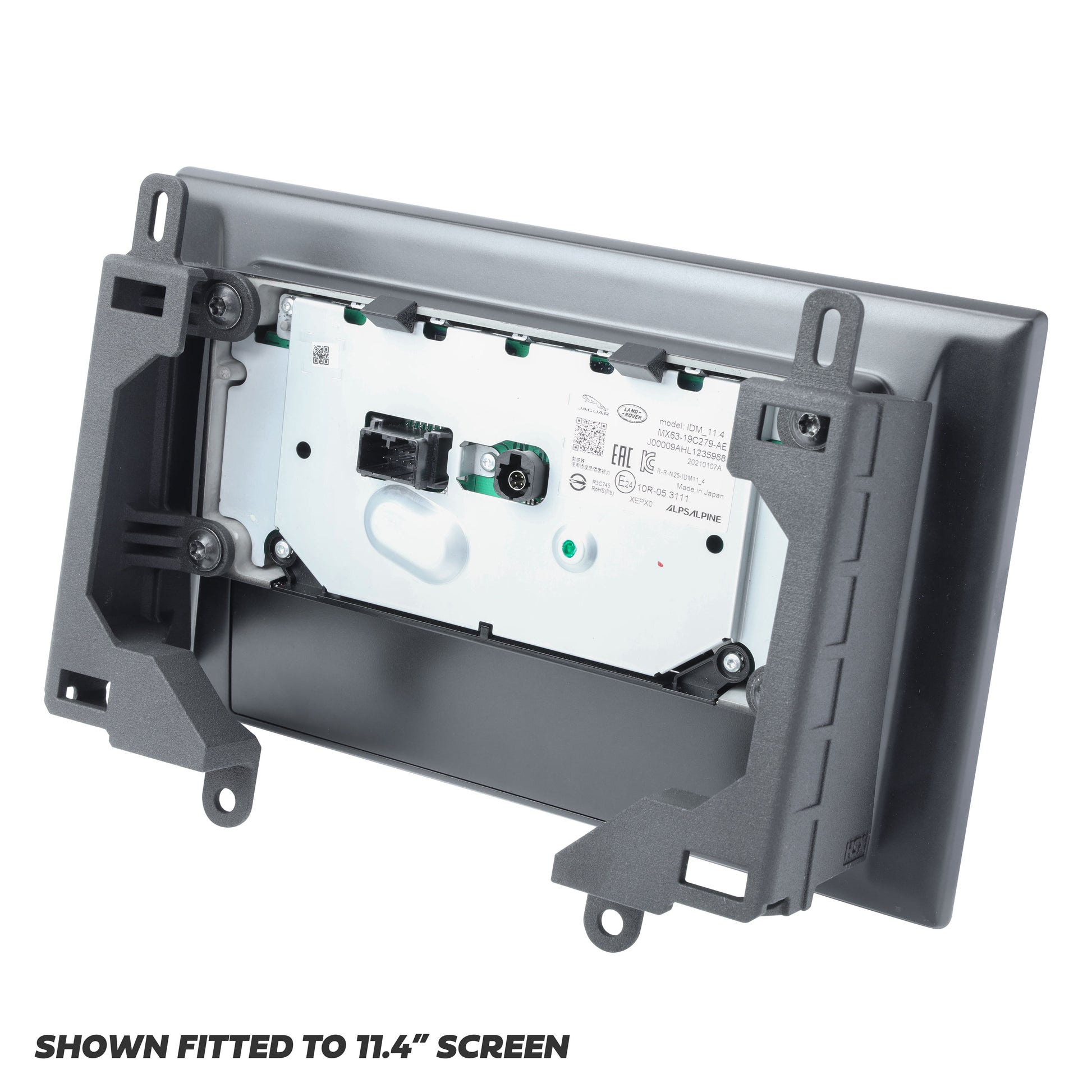

This kit includes a pair of our custom designed mounts and custom wiring loom.

You could replace all of the mounts/brackets with genuine parts (see our other kit to purchase this) or you can use this custom kit (which make the job much easier).

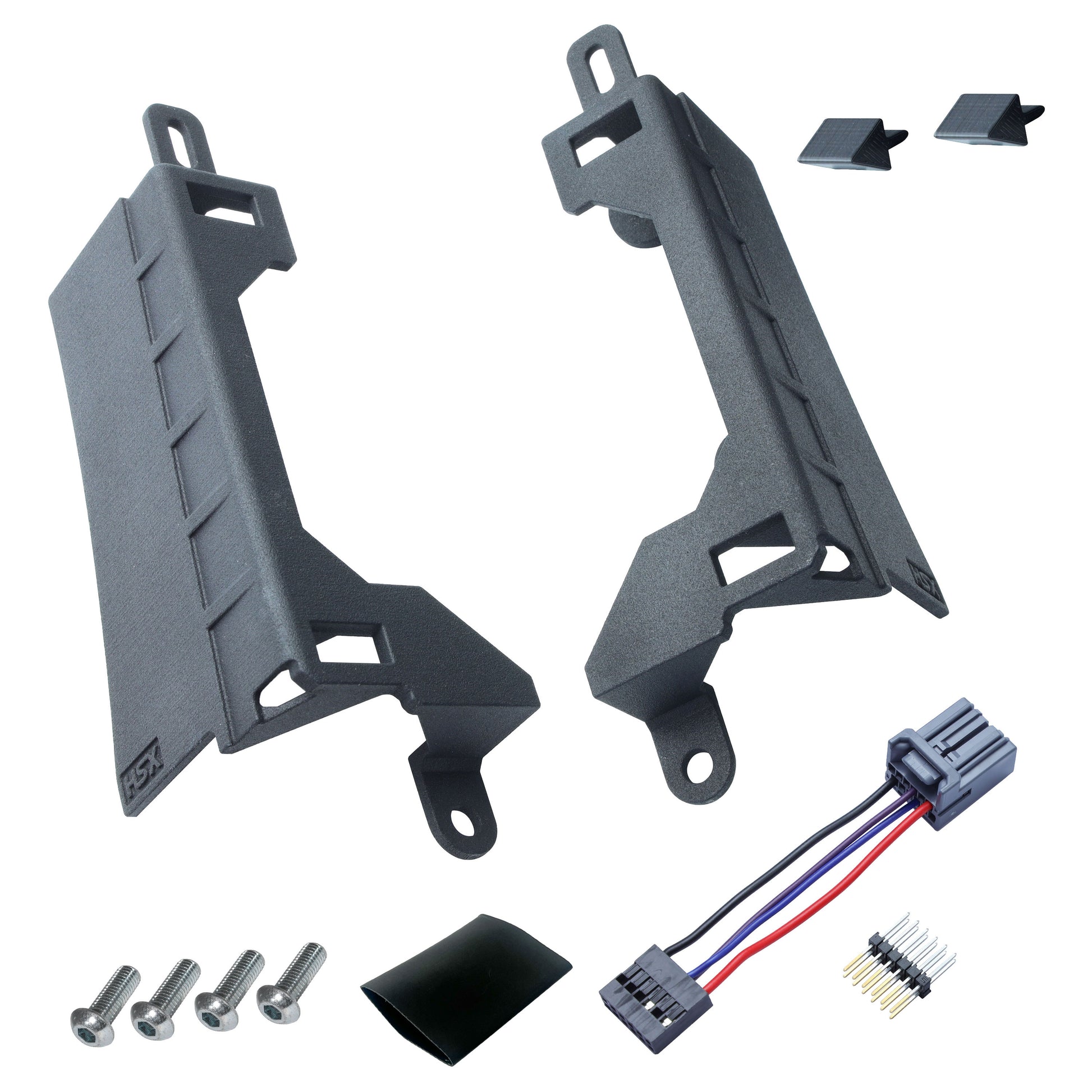

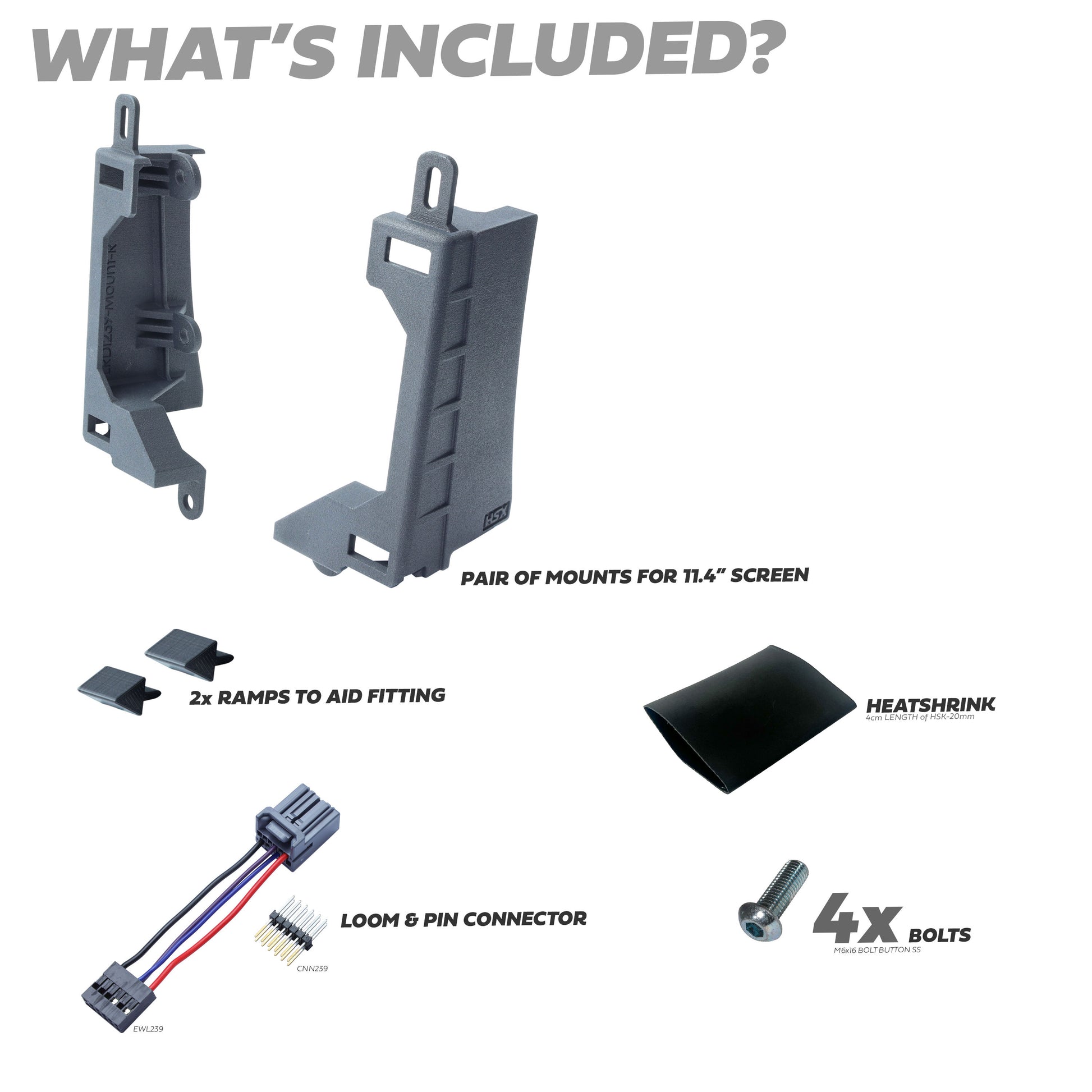

This kit includes:

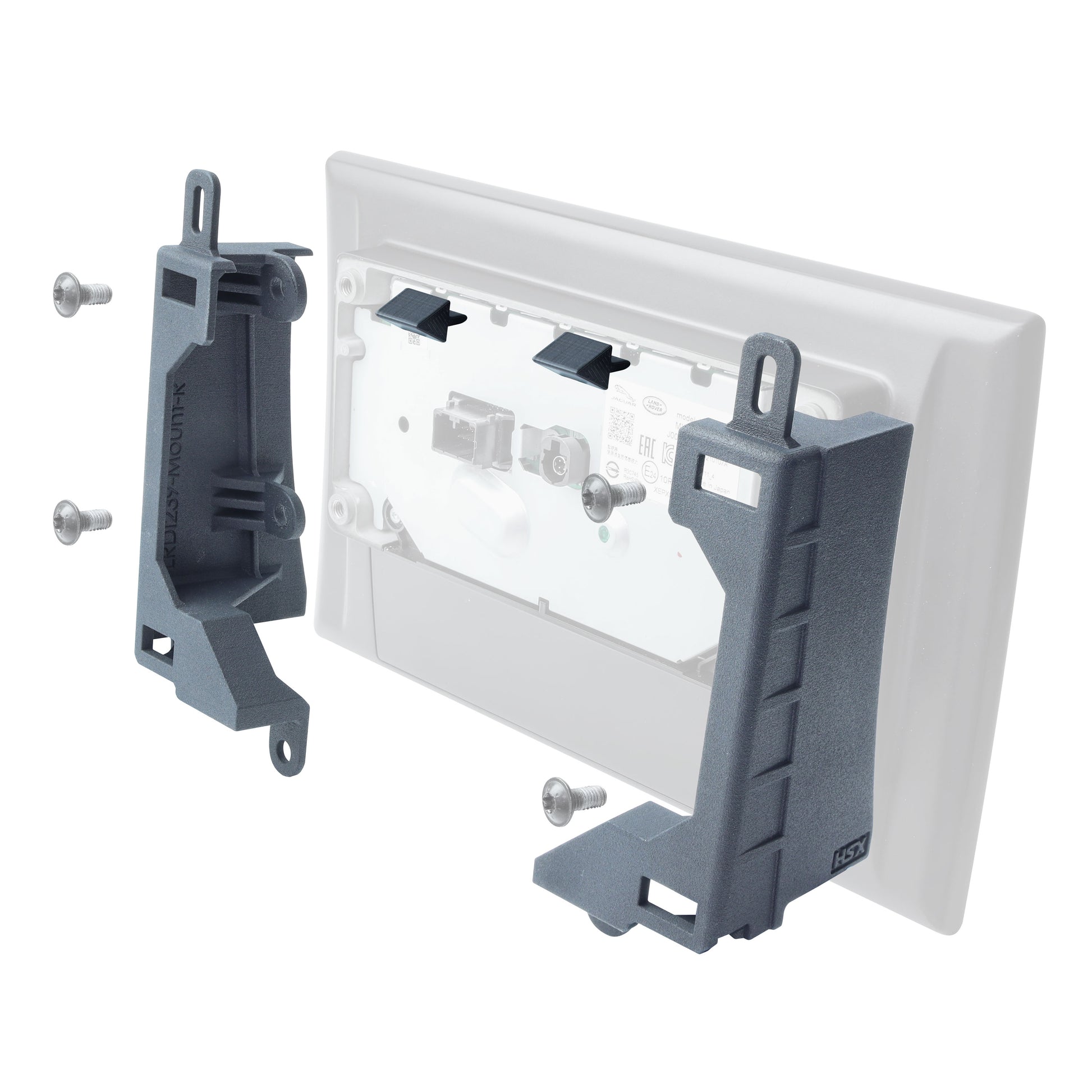

• Custom mounts (L+R)
• Custom Wiring Loom & Adapter
• 4x Bolts
• 1x 4cm piece of heatshrink tubing

This kit does not include the screen. See below table showing the LR part number and Engineer Number of the screen you will need to find. These screens were fitted to several Land Rover and Jaguar models. The advantage of the engineering number is this is what is on the label on the screen.

Item	LR Part No	LR Eng Part Number ( on label )
screen 11.4" (old PN)	LR144528	MX63-19C279-AC / AD / AC
screen 11.4" ( latest )	LR161599	MX63 19C279 AF

Note: Odd but true .. if you get a used screen that has been programmed to a car it works no problem - but a brand new never fitted screen needs to be activated - currently we have not worked out how to do this !. All the used screens we have tried work no problem - you can even see the chassis number of the original car that they were fitted to.

Additionally you will need to change your CCF files on your car so the car knows it is configured with a larger screen.

An additional bonus with using this kit is that it fits better with the top padded trim rail so you do not have to change or modify it, as you would do if using the genuine Land Rover brackets.

These are not genuine Land Rover parts.

See below fitting videos

See below videos :-

Land Rover Defender L663 Brackets and wiring - YouTube

Land Rover Defender L663 CCF File Editing - YouTube

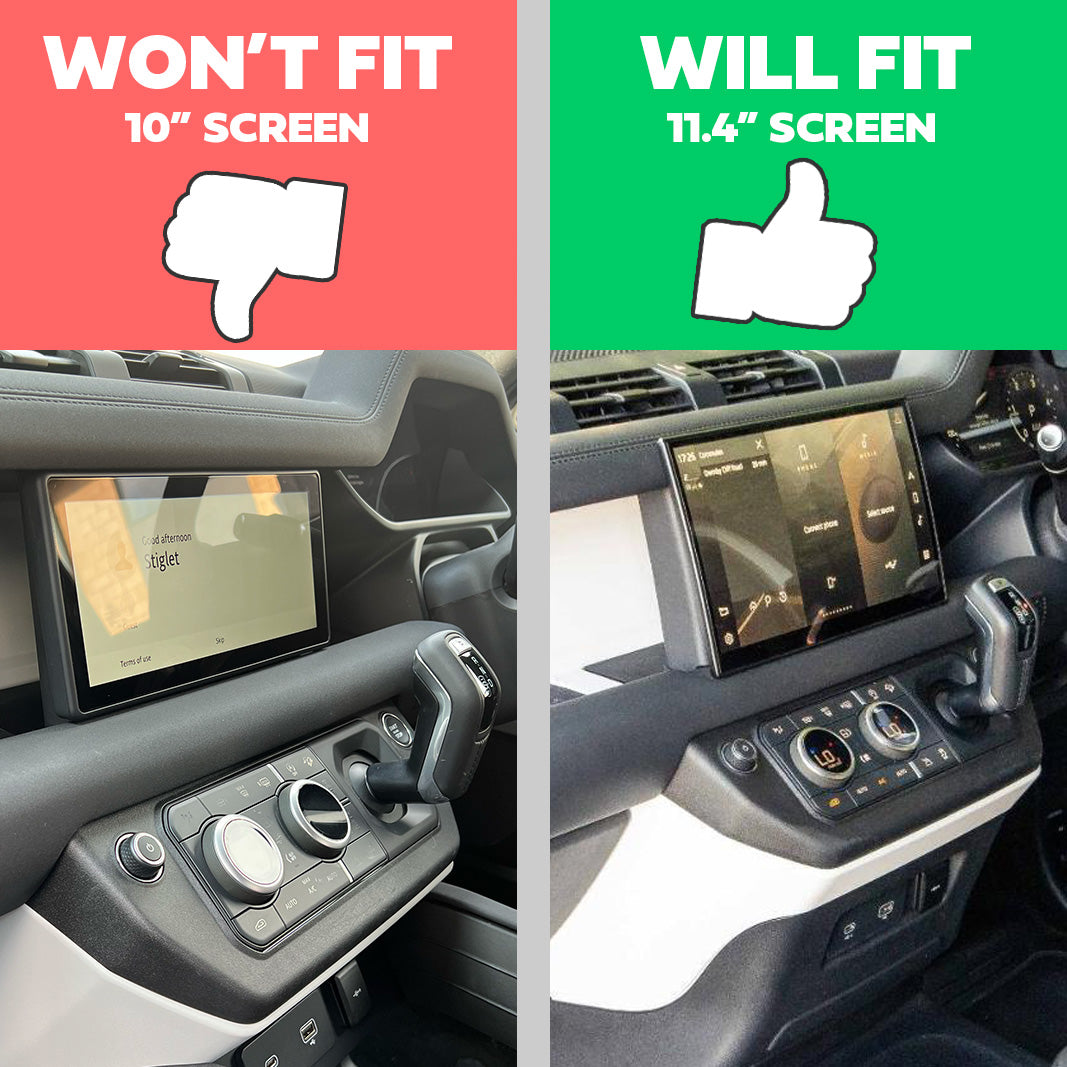

Which Vehicles will this fit ?

This WILL fit the 11.4" PIVI Infotainment screen on the Land Rover Defender L663
