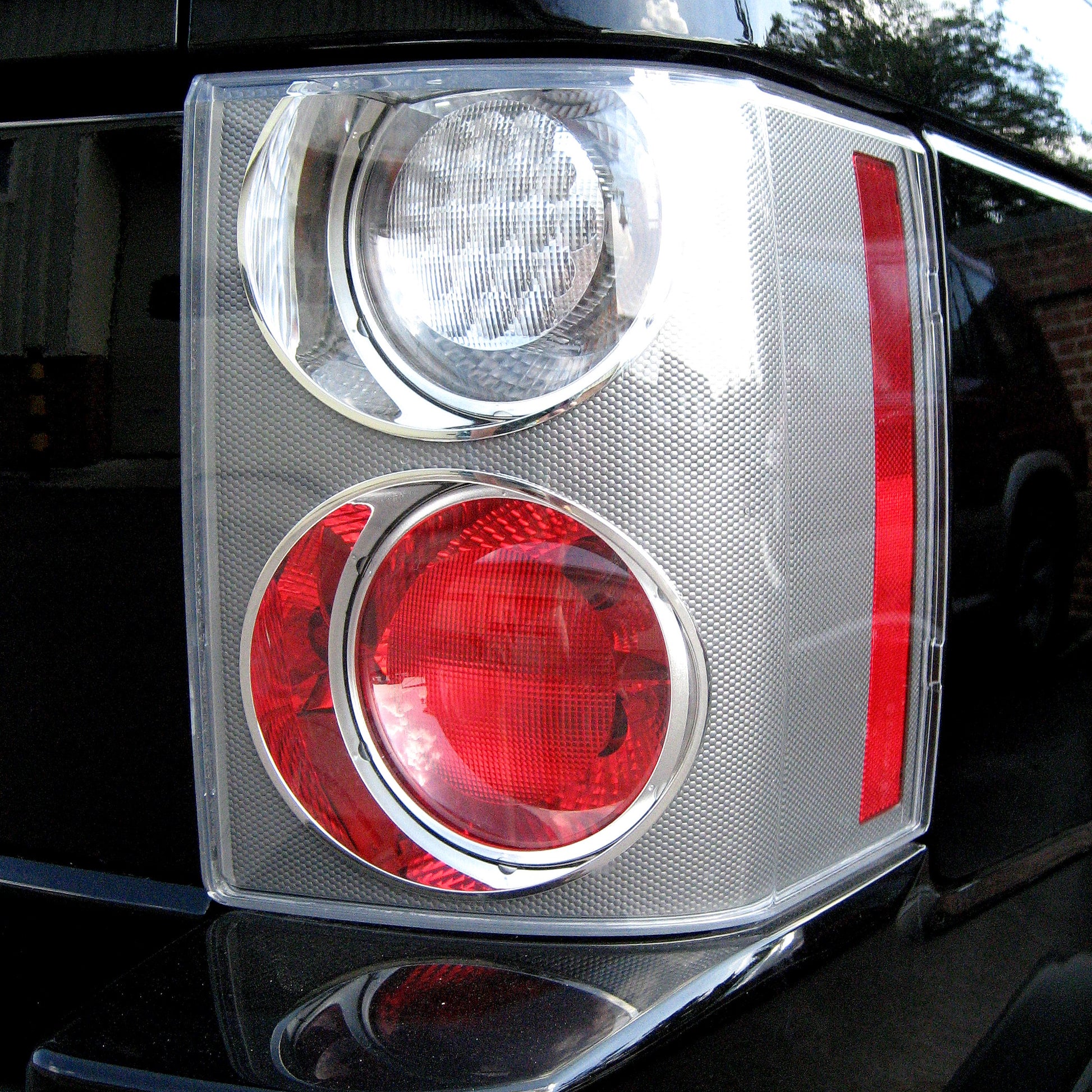

Rear Light Clear/Red for Range Rover L322 2005-09 - RIGHT RH

Right side Rear light unit (Clear and Red )

for Range Rover L322 Vogue 2002 - 2009

This listing is for a right hand ( UK drivers side ) replacement rear light for a Range Rover L322.

The original lights seem to be prone to the rear lens cracking and leaking / misting up.

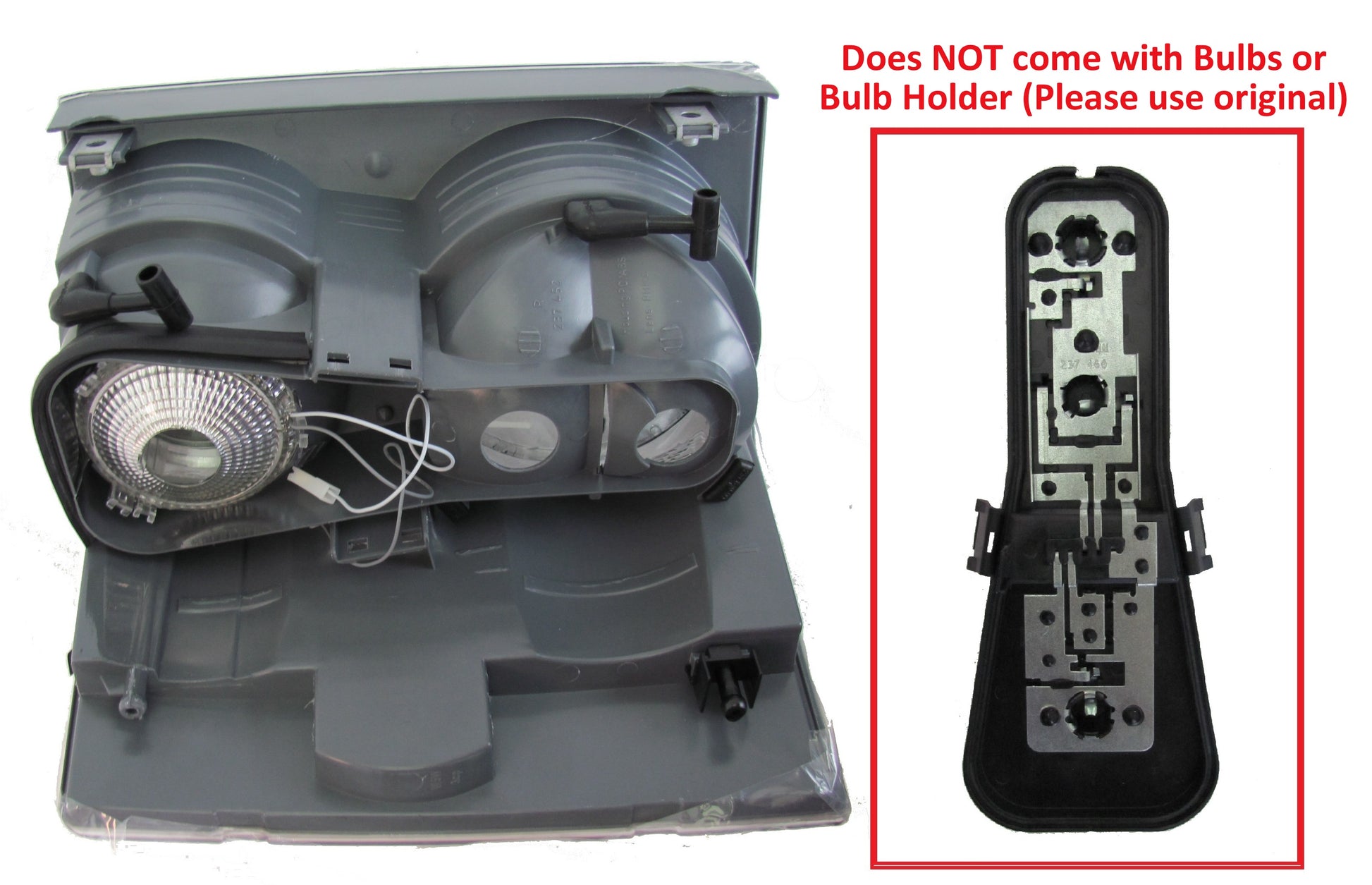

This is a complete light apart from the rear bulb holder and bulbs - you need to swap the bulbs holder assembly from your old light.

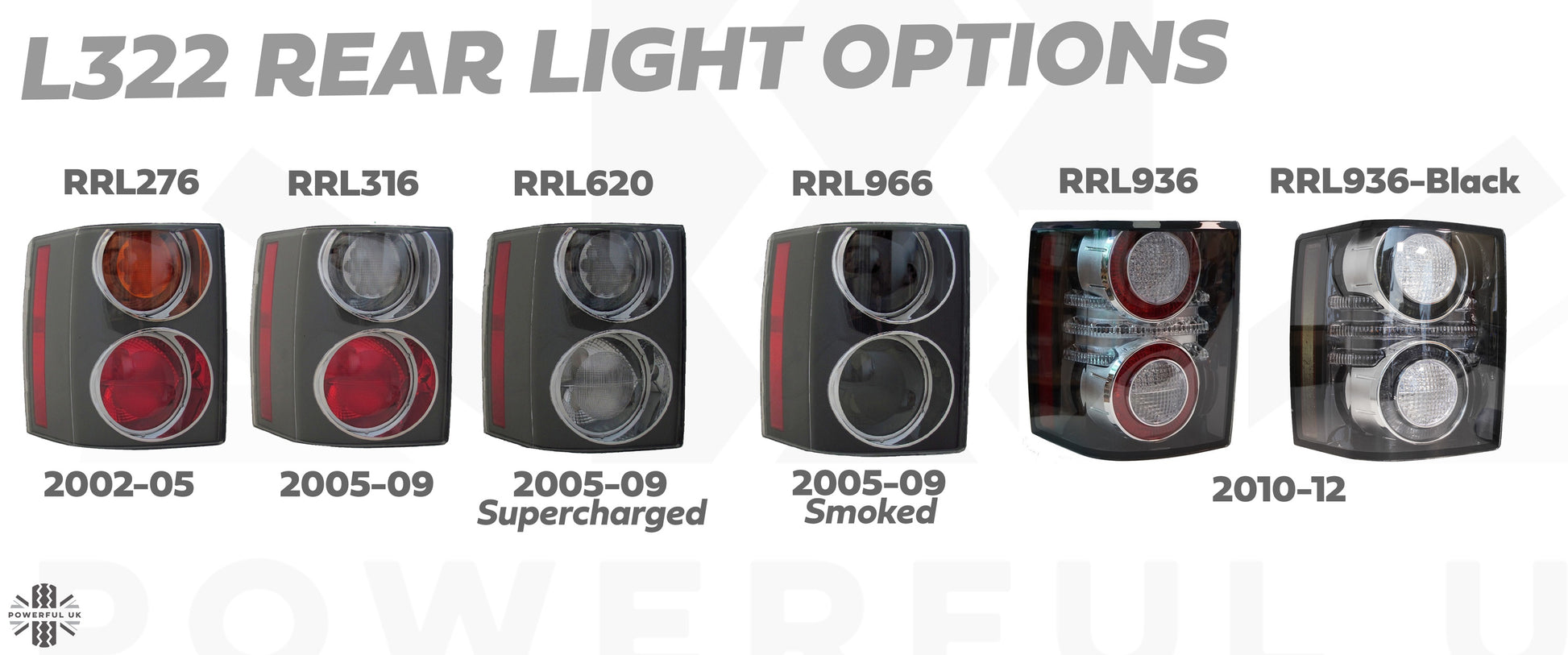

There are 3 types of rear lights fitted to the L322....

1) Orange and Red lens - these were fitted to the early models from 2002 to 2005

2) Clear and Red lens - these were fitted to the 2005 to 2009 models. ( this type is for sale in this listing )

3) Clear and Clear lens - these were fitted to the 2005 to 2009 Supercharged models.

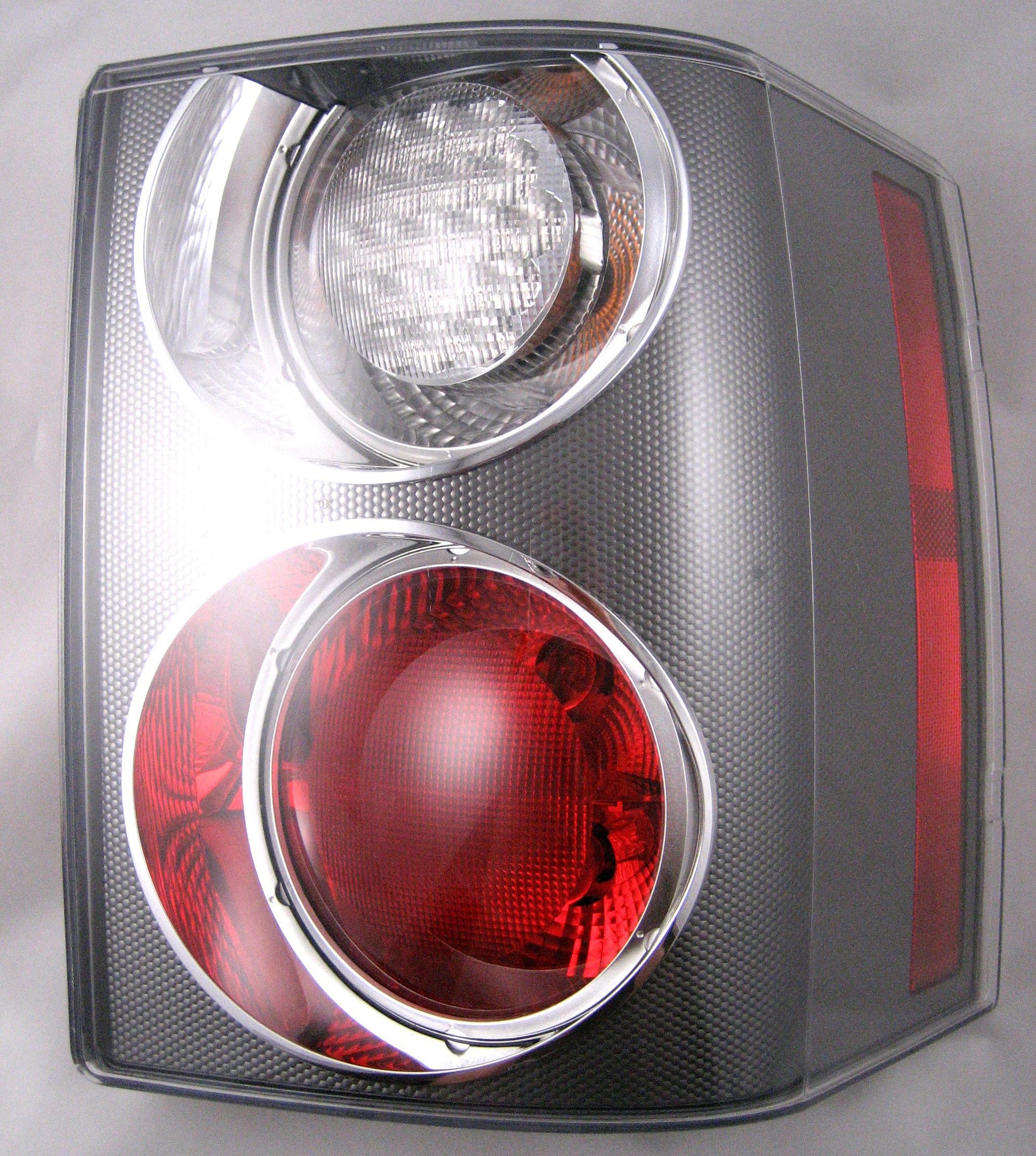

This listing is for a Right side ( driver side or offside ) rear light for a Range Rover L322 with the CLEAR and RED lens.

These can be fitted to a 2005 - 2009 model to replace and damaged or leaking item or fitted to a 2002 - 2005 model as an upgrade.

This will fit Left hand drive and right hand drive cars but please note these are not USA spec ( USA or "NAS" spec lights have additional bulbs in the side )

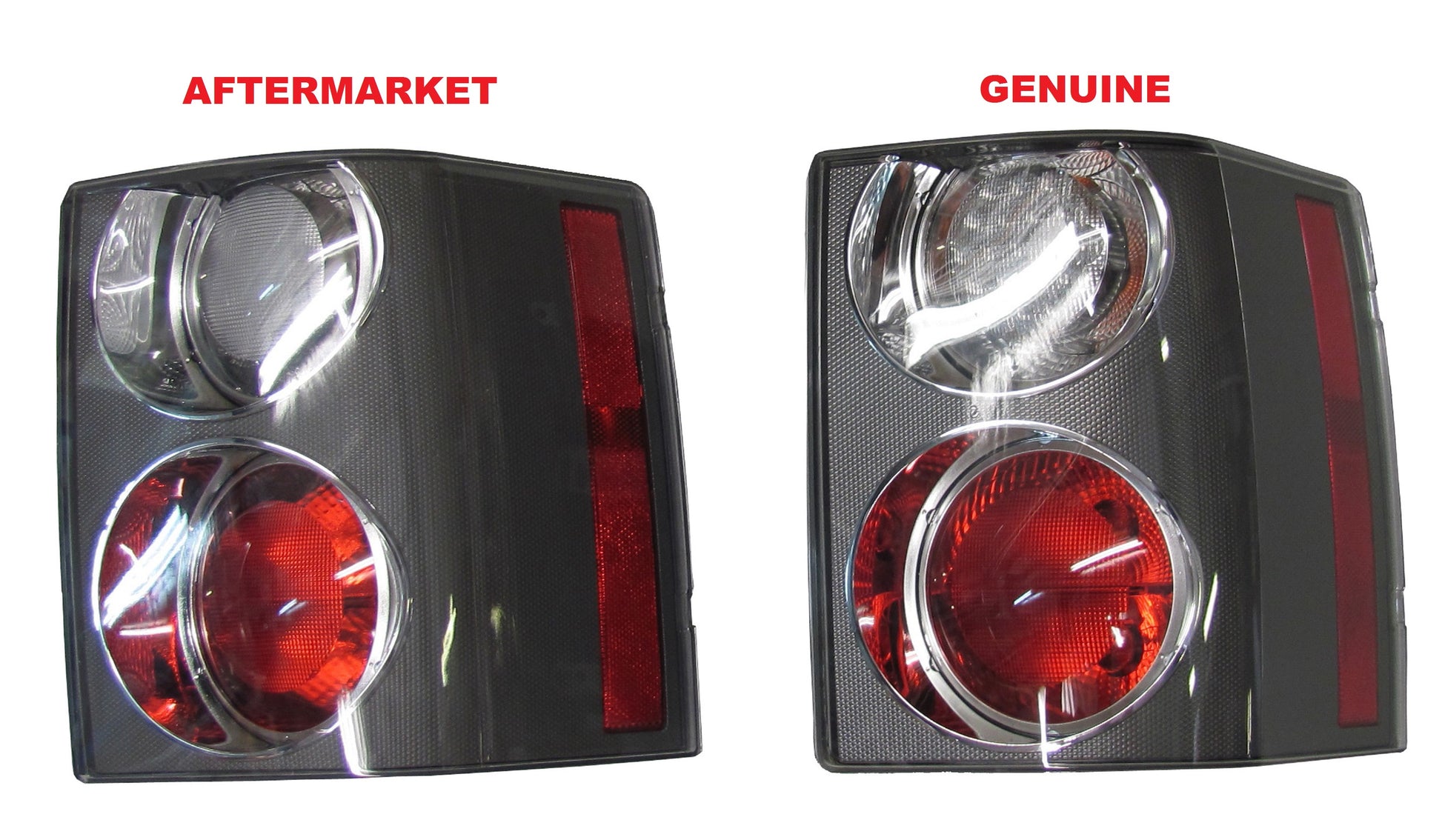

This light is not a genuine Land Rover Parts but can be used as an alternative to Land Rover PN XFB500262LPO

This part is not E Marked but will pass an MOT

See our other listings for the opposite side.

Fitting Details

Remove the rear trim in the boot

Remove the electrical connector from the rear of the light.

Remove the light and fit the new item.

See below video showing how to remove the lights from your car..

See below video showing how fit the rear bulb holders to the lamp unit.

Which Vehicles will this fit ?

This item will fit Range Rover L322 models from 2002 to 2009.

These WILL NOT fit a Range Rover P38, SPORT
